Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK31-246-3

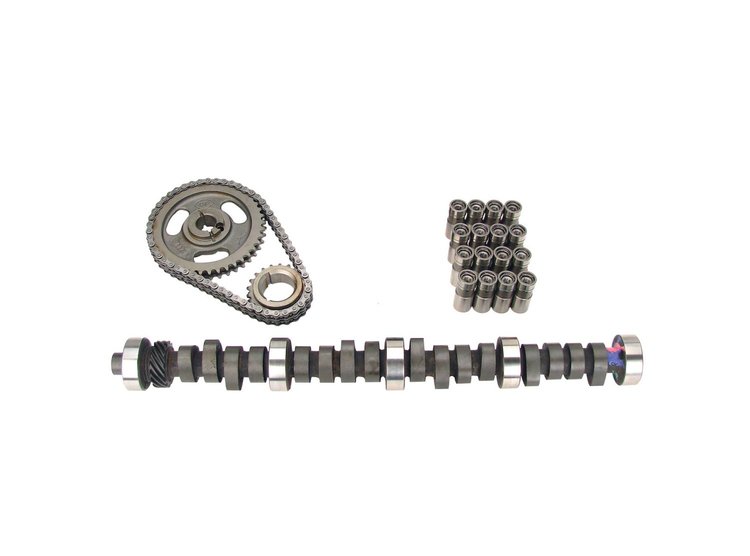

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Small Kit Lift: .520" /.523" Duration: 274°/286° RPM Range: 1800-6000
$43695
Ships on 10/23/2026
Lowest Price GuaranteeFord 221-302 C.I. 8 cyl. 1963-1995 (Includes 221, 260, 289 & 302)
- Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .520''/.523''
Duration: 274°/286°
RPM Range: 1800-6000
Hydraulic-Very strong torque and throttle response, 2500+ stall.
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.4
Package Length25.3
Weight18.36 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic flat tappet
Grind NumberFS XE274H-10
Exh. Duration Advertised (Deg)286
Locks IncludedNo
Engine Make/SizeFord 289-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.52
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,800-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.52 in (13.208 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range1800-6000
Lifter StyleHydraulic flat tappet
Advertised Duration274 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.523
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.520 int./0.523 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.523 in (13.284 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift236
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration286
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./236 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK31-246-3
Package Qty1
Package TypeEA
