Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK31-250-4

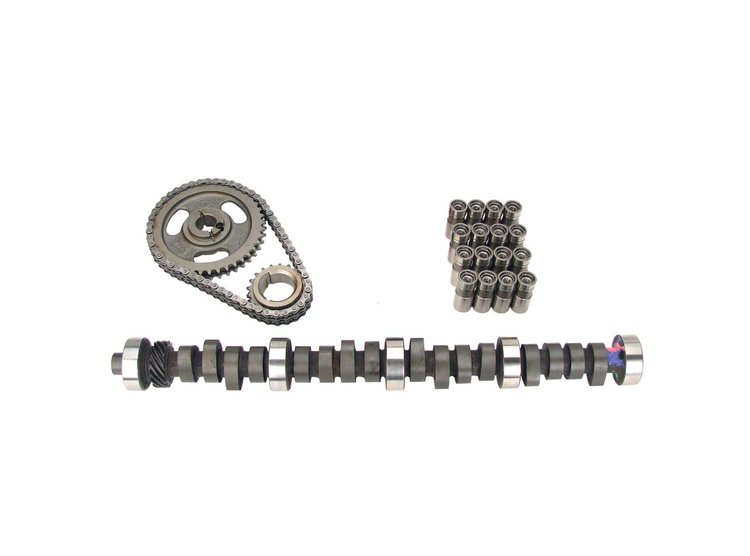

Xtreme Energy 284H Hydraulic Flat Tappet Camshaft Small Kit Lift: .541" /.544" Duration: 284°/296° RPM Range: 2300-6500
$45895
Ships on 10/23/2026
Lowest Price GuaranteeFord 221-302 C.I. 8 cyl. 1963-1995 (Includes 221, 260, 289 & 302)
- Xtreme Energy 284H Hydraulic Flat Tappet Camshaft Small Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Lift: .541''/.544''
Duration: 284°/296°
RPM Range: 2300-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.5
Package Width10.6
Package Length25.2
Weight18.09 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)246
Cam StyleHydraulic flat tappet
Grind NumberFS XE284H-10
Exh. Duration Advertised (Deg)296
Locks IncludedNo
Engine Make/SizeFord 289-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.541
Int. Duration @ .050 In. (Deg)240
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,300-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.541 in (13.741 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)284
Lobe Separation (Deg)110
Rpm Range2300-6500
Lifter StyleHydraulic flat tappet
Advertised Duration284 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.541 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration284
Intake Duration At 050 Inch Lift240
Exhaust Duration At 050 Inch Lift246
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration296
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift240 int./246 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK31-250-4
Package Qty1
Package TypeEA
