Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 289-302 c.i. 8 cyl. 1963-1995

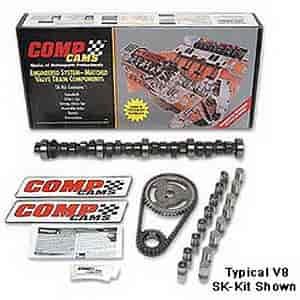

- Dual Energy Hyd. Flat Tappet Camshaft Small Kit
- Hydraulic-High performance
- High end power
- 2000 RPM stall recommended
- Choppy idle
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Ford 289-302ci 1963-1995
Lift: .477"/.510"
Duration: 275°/283°
Lobe Separation Angle: 110°
RPM Range: 2000-6000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.5
Package Width10.7
Package Length25.3
Weight18.34 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)233
Cam StyleHydraulic flat tappet
Grind Number275DEH
Exh. Duration Advertised (Deg)283
Locks IncludedNo
Engine Make/SizeFord 289-302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.477
Int. Duration @ .050 In. (Deg)219
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.477 in (12.116 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)275
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleHydraulic flat tappet
Advertised Duration275 int./283 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.51
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.477 int./0.510 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.51 in (12.954 mm)
Advertised Intake Duration275
Intake Duration At 050 Inch Lift219
Exhaust Duration At 050 Inch Lift233
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration283
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift219 int./233 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK31-418-3
Package Qty1
Package TypeEA
