Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK32-225-4

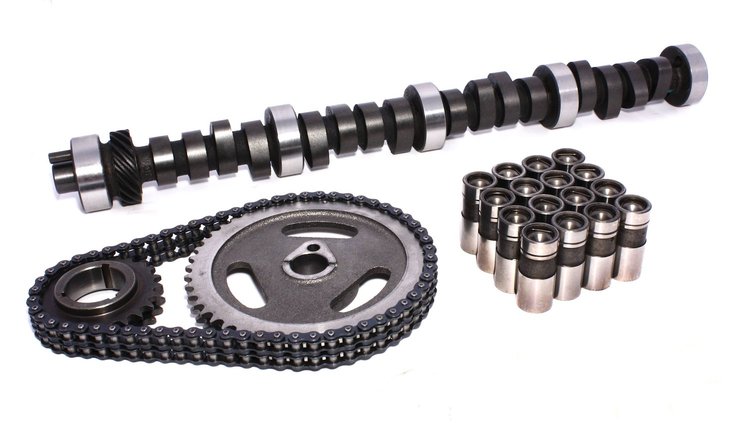

Magnum 280H Hydraulic Flat Tappet Camshaft Small Kit Lift: .530" /.530" Duration: 280°/280° RPM Range: 2000-6000
$41595
Ships on 10/23/2026
Lowest Price GuaranteeFord 351C, 351M-400M 1970-82
- Magnum 280H Hydraulic Flat Tappet Camshaft Small Kit
- Hydraulic-Good in Street Machine with mild converter, headers, gears, 9:1-10:1 compression
- Rough idle
Ford, 351, 351 Cleveland, 400, 351 Modified, 400 Modified, Ford F100, Mach 1, Mustang
Good in street machine with 2500+ stall, headers, gears, 9:1-10:1 compression. Rough idle.
Lift: .530''/.530"
Duration: 280°/280°
RPM Range: 2000-6000
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.08
Package Width10.37
Package Length25.5
Weight19.38 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberFC 280H-10
Exh. Duration Advertised (Deg)280
Locks IncludedNo
Engine Make/SizeFord 351M-400
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.53
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.53 in (13.462 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleHydraulic flat tappet
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.53
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.530 int./0.530 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.53 in (13.462 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK32-225-4
Package Qty1
Package TypeEA
