Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK34-235-4

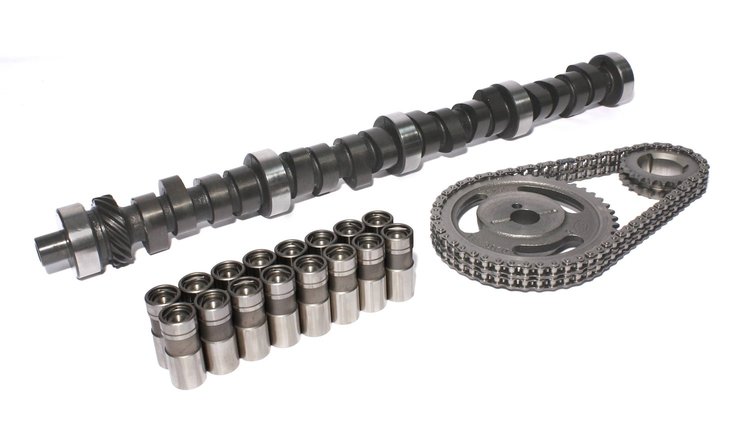

'Xtreme 4x4' Hydraulic Flat Tappet Camshaft
$47695
Ships on 10/19/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1994
- Xtreme 4x4 X4262H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .514''/.524''
Duration: 262°/270°
Lobe Separation Angle: 111°
RPM Range: 1400-5600
Good mid-range, largest for stock converter, heavy towing, noticeable idle.
| Operating Range: | 1400-5600 RPM |
| Duration Advertised: | 262° Intake / 270° Exhaust |
| Duration @ .050' Lift: | 218° Intake / 226° Exhaust |
| Valve Lift w/1.73 Rockers: | .514' Intake / .524' Exhaust |
| Lobe Separation Angle: | 111° |
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Good mid-range, largest for stock converter, heavy towing, noticeable idle. Good for daily driver.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Weight27.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)226
Cam StyleHydraulic flat tappet
Grind NumberFF X4 262H-11
Exh. Duration Advertised (Deg)270
Locks IncludedNo
Engine Make/SizeFord 429-460
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.514
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,400-5,600
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.514 in (13.056 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)262
Lobe Separation (Deg)111
Rpm Range1400-5600
Lifter StyleHydraulic flat tappet
Advertised Duration262 int./270 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.524
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.514 int./0.524 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.524 in (13.31 mm)
Advertised Intake Duration262
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift226
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration270
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift218 int./226 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK34-235-4
Package Qty1
Package TypeEA
