Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

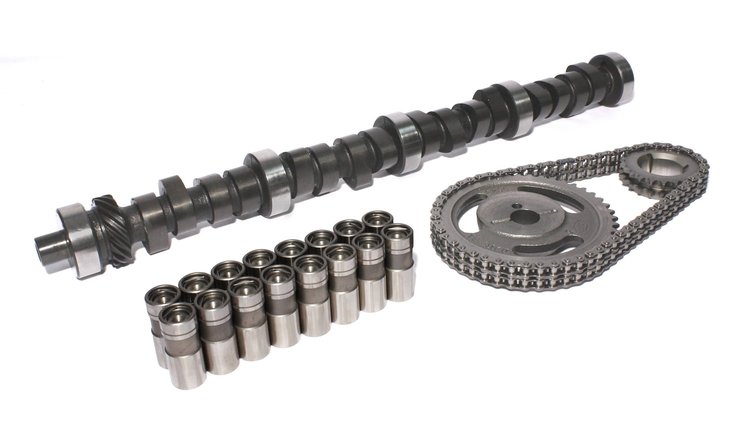

Ford 429, 460ci 1968-94
- Xtreme Marine Hyd. Flat Tappet Cam Small Kit
- Xtreme Marine Camshaft
- 1 Year Limited Warranty
Ford 429, 460ci 1968-94
Lift: .574"/.576"
Duration: 278°/292°
Lobe Separation Angle: 112°
RPM Range: 2000-6200
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberXM278H
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeFord 429-460
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.574
Int. Duration @ .050 In. (Deg)234
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,200
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.564 in (14.326 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)278
Lobe Separation (Deg)112
Rpm Range2000-6200
Lifter StyleHydraulic flat tappet
Advertised Duration278 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.576
Valve Springs IncludedNo
UsageMarine
Valve Lift With Factory Rocker Arm Ratio0.574 int./0.576 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.566 in (14.376 mm)
Advertised Intake Duration278
Intake Duration At 050 Inch Lift234
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift234 int./244 exh.
Valve Springs RequiredNo
Lifters IncludedYes
Vendor Part NumberSK34-241-5
Package Qty1
Package TypeEA
