Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK34-336-4

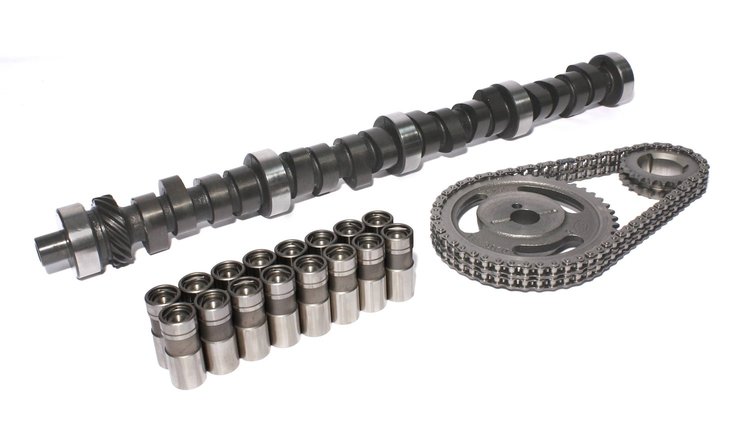

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .560" /.560" Duration: 292°/292° RPM Range: 2500-6500
$46995
Ships on 09/16/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1995
- Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit
- Ford 429, 460 c.i. 8 CYL. 1968-1994
- Hydraulic-Street / Strip use
- Good power
- 3000+ stall, aftermarket manifolds, low gears, 9.5:1 compression
- Very rough idle.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Jet boat with B impeller. Flat bottom or hydro for skiing or performance. Good power. 3000+ stall and raised compression. Very rough idle.
Lift: .560''/.560"
Duration: 292°/292°
RPM Range: 2500-6500
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberFF 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeFord 429-460
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.56
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.56 in (14.224 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.56
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.560 int./0.560 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.56 in (14.224 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK34-336-4
Package Qty1
Package TypeEA
