Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK34-337-4

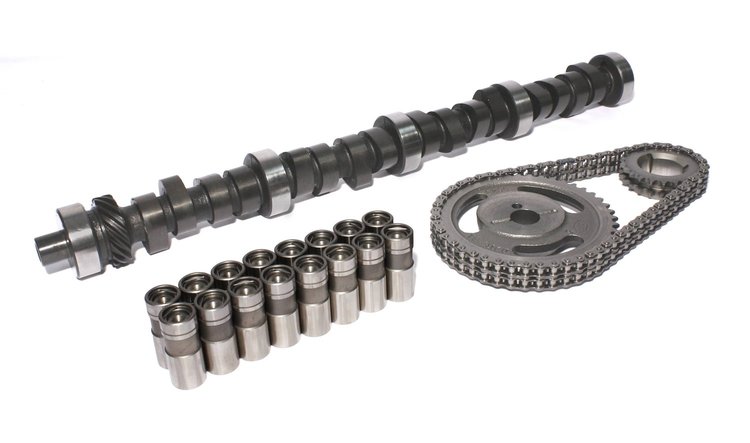

Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit Lift: .585" /.585" Duration: 305°/305° RPM Range: 3000-6800
$50395
Ships on 10/23/2026
Lowest Price GuaranteeFord 429, 460 c.i. 8 CYL. 1968-1995
- Magnum 305H Hydraulic Flat Tappet Camshaft Small Kit
- Ford 429, 460 c.i. 8 CYL. 1968-1994
- Hydraulic-Bracket Racing or limited street use
- Strong top end power
- 10.5:1 compression, 3500+ stall
- Radical racy idle.
Ford; 429; 460; BBF; Big Block Ford; 385; Cobra Jet; 429 Cobra Jet; Interceptor; Lima; F100; F150; F250; Super Duty; E150; E250
Jet boat with B impeller. Flat bottom or hydro bracket racer. Likes tunnel ram. Bracket racing or limited street use. Strong top end power. 10.5:1 compression, 3500+ stall. Radical racy idle.
Lift: .585''/.585"
Duration: 305°/305°
RPM Range: 3000-6800
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.5 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)253
Cam StyleHydraulic flat tappet
Grind NumberFF 305H-10
Exh. Duration Advertised (Deg)305
Locks IncludedNo
Engine Make/SizeFord 429-460
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.585
Int. Duration @ .050 In. (Deg)253
Assembly Lubricant IncludedYes
Basic Operating Rpm Range3,000-6,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.585 in (14.859 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)110
Rpm Range3000-6800
Lifter StyleHydraulic flat tappet
Advertised Duration305 int./305 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.585
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.585 int./0.585 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.585 in (14.859 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift253
Exhaust Duration At 050 Inch Lift253
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration305
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift253 int./253 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK34-337-4
Package Qty1
Package TypeEA
