Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-226-3

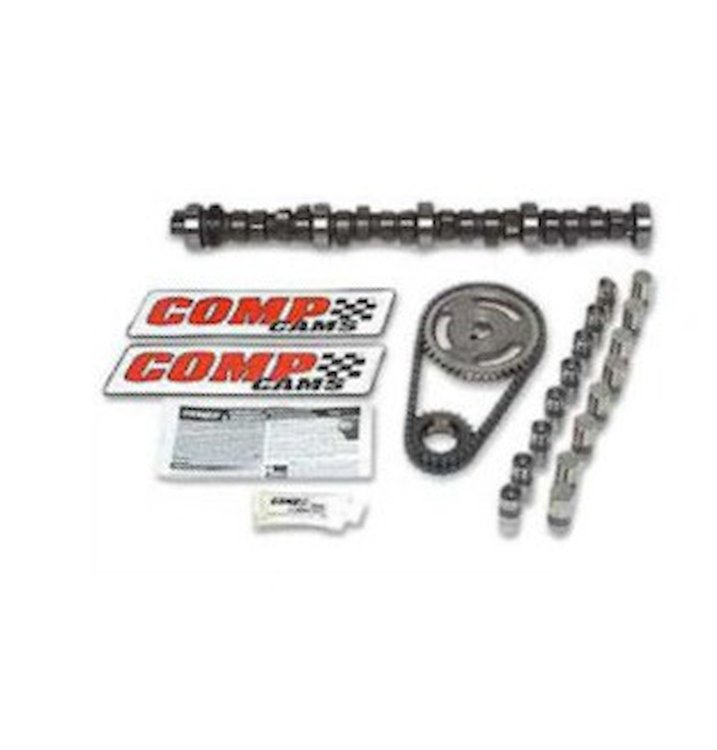

Magnum 280H Hydraulic Flat Tappet Camshaft Small Kit Lift: .512" /.512" Duration: 280°/280° RPM Range: 2000-6000
$41695
Ships on 10/23/2026
Lowest Price GuaranteeFord 351W 8-cyl. 1969-1995
- Magnum 280H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .512''/.512"
Duration: 280°/280°
RPM Range: 2000-6000
*Note: Firing Order 1-3-7-2-6-5-4-8
Excellent street machine camshaft. Headers and mild converter with low gears. Rough idle. 9:1 compression.
| Operating Range: | 2000-6000 RPM |
| Duration Advertised: | 280° Intake / 280° Exhaust |
| Duration @ .050' Lift: | 230° Intake / 230° Exhaust |
| Valve Lift w/1.6 Rockers: | .512' Intake / .512' Exhaust |
| Lobe Separation Angle: | 110° |
Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150
Excellent street machine camshaft. Headers and 2200+ stall with low gears. Rough idle. 9:1 compression.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.8
Package Length25.3
Weight18.8 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)230
Cam StyleHydraulic flat tappet
Grind NumberFW 280H-10
Exh. Duration Advertised (Deg)280
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.512
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,000-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.512 in (13.005 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)280
Lobe Separation (Deg)110
Rpm Range2000-6000
Lifter StyleHydraulic flat tappet
Advertised Duration280 int./280 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.512
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.512 int./0.512 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.512 in (13.005 mm)
Advertised Intake Duration280
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift230
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration280
Lifter TypeHydraulic Flat Tappet
Part FitmentSemi Universal
Duration At 050 Inch Lift230 int./230 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-226-3
Package Qty1
Package TypeEA
