Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-324-8

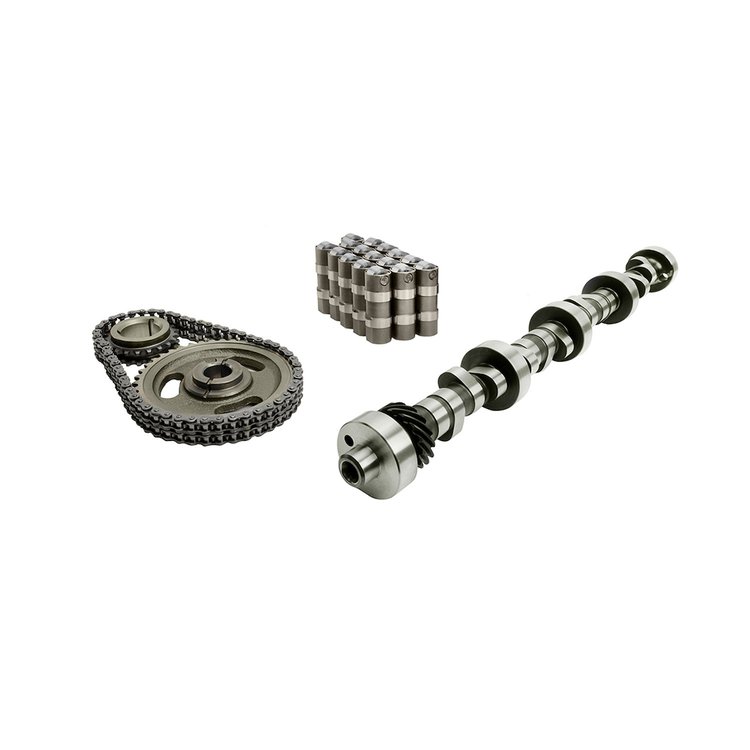

Comp Cams Xtreme Energy Hydraulic Roller Camshafts
$99595
Ships on 10/19/2026
Lowest Price GuaranteeFord 5.0L 8 cyl. 1982-2002Computer Controlled (EFI) for engines originally equipped with hydraulic roller camshaft. (WITH 1.7 ROCKERS)
- Xtreme Energy XE270HR Hydraulic Roller Camshaft Small Kit
Lift: .544''/.544''
Duration: 270°/276°
Lobe Separation Angle: 112°
RPM Range: 1800-5800
Computer compatible (E.F.I.) with O.E. hydraulic roller cams 1985-95 USING 1.7:1 ROCKERS
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
For use with 1.7:1 rockers. Mild modifications, 3.20-3.73 gears, larger throttle body and mass air, good heads and manifold.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.1
Package Width10.3
Package Length25.5
Weight19.95 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)224
Cam StyleHydraulic roller tappet
Grind NumberFW XE270HR-12
Exh. Duration Advertised (Deg)276
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.544
Int. Duration @ .050 In. (Deg)218
Assembly Lubricant IncludedNo
Basic Operating Rpm Range1,800-5,800
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.544 in (13.818 mm)
Computer-Controlled CompatibleYes
Int. Duration Advertised (Deg)270
Lobe Separation (Deg)112
Rpm Range1800-5800
Lifter StyleHydraulic roller
Advertised Duration270 int./276 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.544
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.544 int./0.544 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.544 in (13.818 mm)
Advertised Intake Duration270
Intake Duration At 050 Inch Lift218
Exhaust Duration At 050 Inch Lift224
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration276
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift218 int./224 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-324-8
Package Qty1
Package TypeEA
