Vehicle Info NeededCOMP CAMSPART NUMBER: 249-SK35-330-3

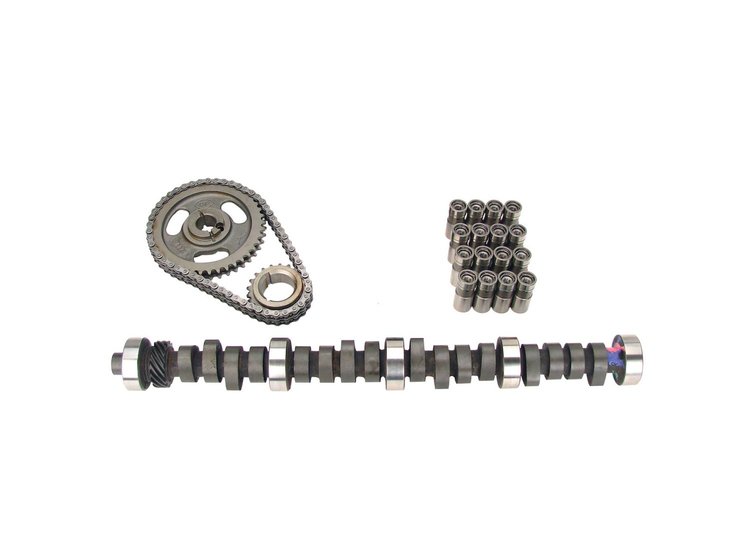

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .518" /.518" Duration: 292°/292° RPM Range: 2500-6500
$44895
Ships on 10/23/2026
Lowest Price GuaranteeFord 351W 8-cyl. 1969-1995
- Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .518''/.518"
Duration: 292°/292°
RPM Range: 2500-6500
*Note: Firing Order 1-3-7-2-6-5-4-8
Great street/strip cam. 10:1 compression, headers, intake, gears and 3000-stall converter. Very rough idle.
| Operating Range: | 2500-6500 RPM |
| Duration Advertised: | 292° Intake / 292° Exhaust |
| Duration @ .050' Lift: | 244° Intake / 244° Exhaust |
| Valve Lift w/1.6 Rockers: | .518' Intake / .518' Exhaust |
| Lobe Separation Angle: | 110° |
Ford; SBF; Mustang; Windsor; Fairlane; Meteor; Mercury; GT; 22; 260; Sunbeam; Tiger; 289; 302; 351; 289; HiPo; K-Code; GT-350; Shelby; Boss; 5.0; 308; Windsor; Torino; Cougar; F-150; Squire; Thunderbird; LTD; Galaxie; Grand Marquis
Great street/strip cam. 10:1 compression, headers, intake, gears and 3000+ stall. Very rough idle.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width11.5
Package Length25.0
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberFW 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeFord 5.0L/302
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.518
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.518 in (13.157 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.518 in (13.157 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK35-330-3
Package Qty1
Package TypeEA
