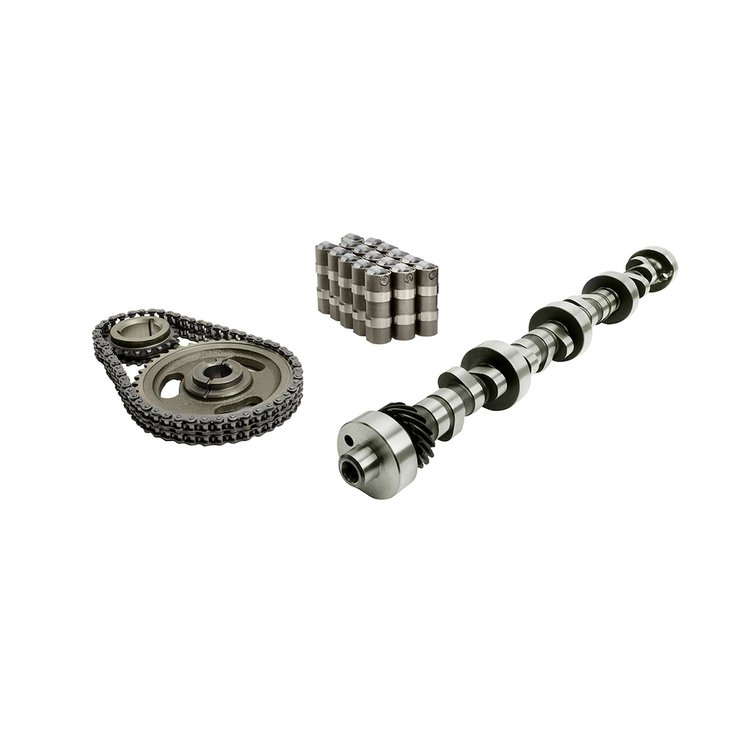

Magnum Hydraulic Roller Camshaft Small Kit Ford 351W 1969-1995 Retro Fit Lift: .576"/.576"
InfoVehicle Info Needed
COMP CAMSPART NUMBER: 249-SK35-462-8

Magnum Hydraulic Roller Camshaft Small Kit Ford 351W 1969-1995 Retro Fit Lift: .576"/.576"

$89095
ShippingShips on 09/16/2026
Lowest PriceLowest Price Guarantee

Ford 351W 1969-1995
  • Retro-Fit Non-EFI
    • Magnum Hydraulic Roller Camshaft Small Kit
      Ford 351W 1969-1995 Retro Fit
    • Lift: .576"/.576"
    • Duration: 304°/304°
    • Lobe Separation Angle: 110°
    • RPM Range: 3000-6500

    • For engines that DID NOT come from the factory with hydraulic roller cams, NOT FOR E.F.I.
    • Cams Are Very Aggressive
    • Designed For Performance Oriented Vehicles
    • Deliver More Power Than Standard Camshafts
    • 1 Year Limited Warranty

      Ford, 351W, Windsor, 351 Windsor, 302, 5.0 HO, Explorer, Mutang, Ford Mustang, 408, 347, Fox Body Mustang, Fox Body, 302 HO, Cougar, F100, F150


      Street/strip, 4 speed or 3200+ stall and 4.10 or lower gear. Higher compression, good intake and headers.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Part TypeCamshaft Kit
    BrandCOMP CAMS
    Package Height5.2
    Package Width10.6
    Package Length25.4
    Weight17.55 PG
    Part CategoryPerformance Parts
    Exh. Duration @ .050 In. (Deg)244
    Cam StyleHydraulic roller tappet
    Grind NumberFW 304RF-HR10
    Exh. Duration Advertised (Deg)304
    Locks IncludedNo
    Engine Make/SizeFord 351W
    Retainers IncludedNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.576
    Int. Duration @ .050 In. (Deg)244
    Assembly Lubricant IncludedNo
    Basic Operating Rpm Range3,000-6,500
    Pushrods IncludedNo
    Gaskets IncludedNo
    Rocker Arms IncludedNo
    Intake Valve Lift0.576 in (14.63 mm)
    Computer-Controlled CompatibleNo
    Int. Duration Advertised (Deg)304
    Lobe Separation (Deg)110
    Rpm Range3000-6500
    Lifter StyleHydraulic roller
    Advertised Duration304 int./304 exh.
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.576
    Valve Springs IncludedNo
    UsageStreet/Strip
    Valve Lift With Factory Rocker Arm Ratio0.576 int./0.576 exh.
    QuantitySold as a kit
    Valve Stem Seals IncludedNo
    Exhaust Valve Lift0.576 in (14.63 mm)
    Advertised Intake Duration304
    Intake Duration At 050 Inch Lift244
    Exhaust Duration At 050 Inch Lift244
    Timing Chain StyleDouble non-roller
    Timing Chain And Gears IncludedYes
    Advertised Exhaust Duration304
    Lifter TypeHydraulic Roller
    Part FitmentSemi Universal
    Duration At 050 Inch Lift244 int./244 exh.
    Valve Springs RequiredYes
    Lifters IncludedYes
    Vendor Part NumberSK35-462-8
    Package Qty1
    Package TypeEA
