Product Discontinued
COMP CAMSPART NUMBER: 249-SK42-236-4

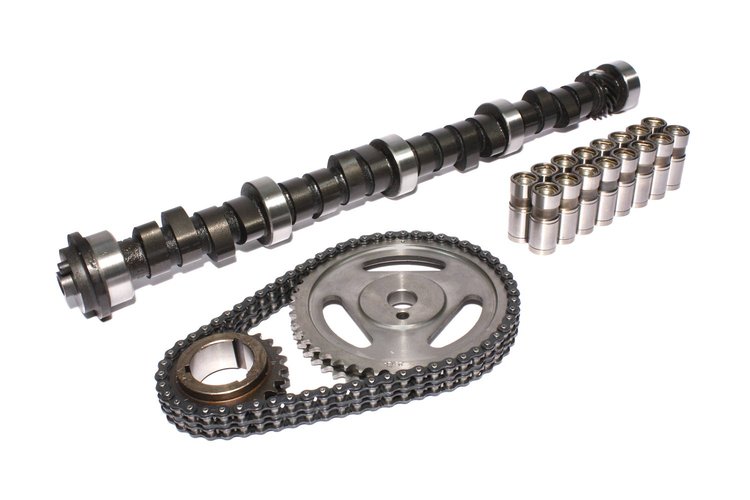

Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit Lift: .518" /.518" Duration: 292°/292° RPM Range: 2500-6500
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Oldsmobile 260-455 c.i. 8 cyl. 1967-1990
- Magnum 292H Hydraulic Flat Tappet Camshaft Small Kit
Lift: .518''/.518"
Duration: 292°/292°
RPM Range: 2500-6500
Hydraulic-Street / Strip, 3000+ stall, with aftermarket manifolds, lower gears, increased compression. Very rough idle.
Olds; Oldsmobile; Cutlass; Cutlass Supreme; 98; Calais; Ciera; Custom Cruiser; Starfire; Firenza; 88; Rocket; Rocket 88; Vista Cruiser; Delta 88; 260; 442; 307; 350; 403; 400; 425; 455
Street/strip, 3000+ stall, with aftermarket manifolds, lower gears, increased compression. Very rough idle. Performance cam for B impeller in jet boat. River or bracket racing.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.25
Package Width10.25
Package Length25.5
Weight19.6 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)244
Cam StyleHydraulic flat tappet
Grind NumberOL 292H-10
Exh. Duration Advertised (Deg)292
Locks IncludedNo
Engine Make/SizeOlds 260-455
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.518
Int. Duration @ .050 In. (Deg)244
Assembly Lubricant IncludedYes
Basic Operating Rpm Range2,500-6,500
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.518 in (13.157 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)292
Lobe Separation (Deg)110
Rpm Range2500-6500
Lifter StyleHydraulic flat tappet
Advertised Duration292 int./292 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.518
Valve Springs IncludedNo
UsageStreet/Strip
Valve Lift With Factory Rocker Arm Ratio0.518 int./0.518 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.518 in (13.157 mm)
Advertised Intake Duration292
Intake Duration At 050 Inch Lift244
Exhaust Duration At 050 Inch Lift244
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration292
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift244 int./244 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK42-236-4
Package Qty1
Package TypeEA
