Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Oldsmobile 260-455 c.i. 8 cyl. 1967-1990

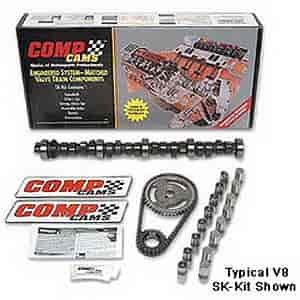

- Xtreme Energy Retro-Fit XR290HR Hydraulic Roller Camshaft Small Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Olds; Oldsmobile; Cutlass; Cutlass Supreme; 98; Calais; Ciera; Custom Cruiser; Starfire; Firenza; 88; Rocket; Rocket 88; Vista Cruiser; Delta 88; 260; 442; 307; 350; 403; 400; 425; 455
Lift: .515''/.533''
Duration: 290°/296°
Lobe Separation Angle: 110°
RPM Range: 2200-6000
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.0
Package Width10.5
Package Length26.0
Weight23.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)242
Cam StyleHydraulic roller tappet
Grind NumberXR290HR
Exh. Duration Advertised (Deg)296
Locks IncludedNo
Engine Make/SizeOlds 260-455
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.515
Int. Duration @ .050 In. (Deg)236
Assembly Lubricant IncludedNo
Basic Operating Rpm Range2,200-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.515 in (13.081 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)290
Lobe Separation (Deg)110
Rpm Range2200-6000
Lifter StyleHydraulic roller
Advertised Duration290 int./296 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.533
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.515 int./0.533 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.533 in (13.538 mm)
Advertised Intake Duration290
Intake Duration At 050 Inch Lift236
Exhaust Duration At 050 Inch Lift242
Timing Chain StyleDouble roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration296
Lifter TypeHydraulic Roller
Duration At 050 Inch Lift236 int./242 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK42-433-9
Package Qty1
Package TypeEA
