Product Discontinued
COMP CAMSPART NUMBER: 249-SK51-224-4

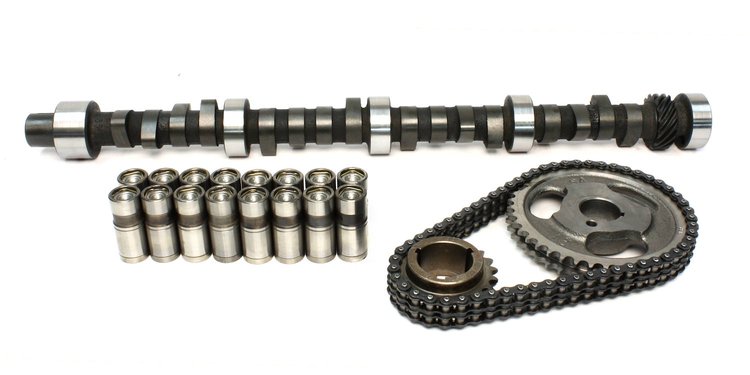

Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Small Kit Lift: .488" /.491" Duration: 274°/286° RPM Range: 1800-6000
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Pontiac 265-455ci V-8 1955-81
- Xtreme Energy 274H Hydraulic Flat Tappet Camshaft Small Kit
- Produces Better Throttle Response
- Produces Top Engine Horsepower
- Delivers Increased Engine Vacuum
- 1 Year Limited Warranty
Lift: .488''/.491''
Duration: 274°/286°
RPM Range: 1800-6000
Part TypeCamshaft Kit
BrandCOMP CAMS
Package Height5.2
Package Width10.4
Package Length25.4
Weight18.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)236
Cam StyleHydraulic flat tappet
Grind NumberP XE274H-10
Exh. Duration Advertised (Deg)286
Locks IncludedNo
Engine Make/SizePontiac 265-455
Retainers IncludedNo
Intake Valve Lift With Factory Rocker Arm Ratio (I0.488
Int. Duration @ .050 In. (Deg)230
Assembly Lubricant IncludedYes
Basic Operating Rpm Range1,800-6,000
Pushrods IncludedNo
Gaskets IncludedNo
Rocker Arms IncludedNo
Intake Valve Lift0.488 in (12.395 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)274
Lobe Separation (Deg)110
Rpm Range1800-6000
Lifter StyleHydraulic flat tappet
Advertised Duration274 int./286 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.491
Valve Springs IncludedNo
UsageStreet/Performance
Valve Lift With Factory Rocker Arm Ratio0.488 int./0.491 exh.
QuantitySold as a kit
Valve Stem Seals IncludedNo
Exhaust Valve Lift0.491 in (12.471 mm)
Advertised Intake Duration274
Intake Duration At 050 Inch Lift230
Exhaust Duration At 050 Inch Lift236
Timing Chain StyleDouble non-roller
Timing Chain And Gears IncludedYes
Advertised Exhaust Duration286
Lifter TypeHydraulic Flat Tappet
Duration At 050 Inch Lift230 int./236 exh.
Valve Springs RequiredYes
Lifters IncludedYes
Vendor Part NumberSK51-224-4
Package Qty1
Package TypeEA
