Made in USA

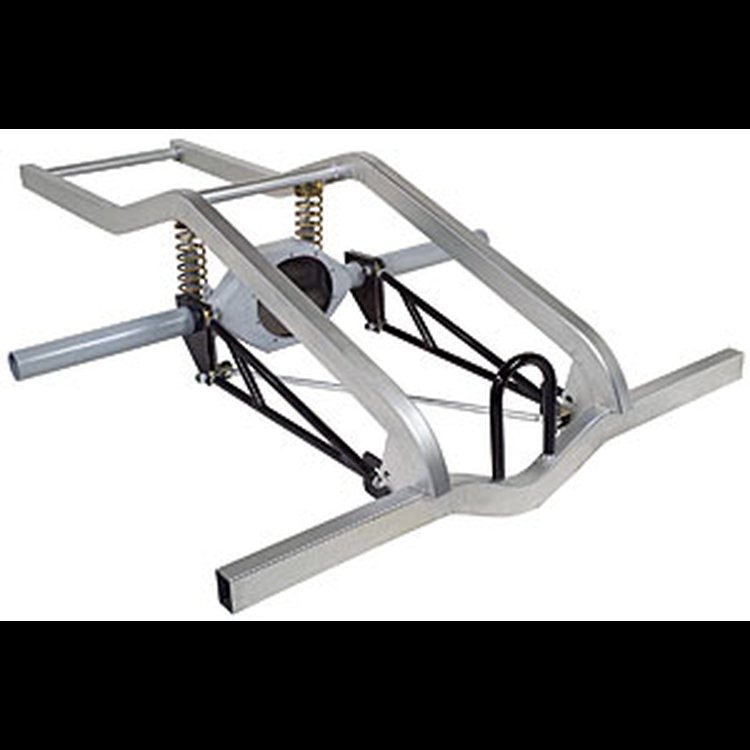

Ladder Bar Rear Frame Kit 24" Wide
InfoVehicle Info Needed
COMPETITION ENGINEERINGPART NUMBER: 247-0423

Ladder Bar Rear Frame Kit 24" Wide

$1,88899
Truck Freight
ShippingShips on 12/23/2026
Lowest PriceLowest Price Guarantee

Ladder Bar Rear Kits - 24"
    Ladder Bar Rear Frame Kit
  • 24" Wide
  • 3-Way Adjustable Shock
  • Coil Spring Mount
  • 125 lbs./in. Spring Rate

    COMPETITION ENGINEERING LADDER BAR REAR FRAME RAIL KITS

    Hook up and win... right out of the box!
    These kits save hours of fabrication time. Each is welded on precise jigs for expert accuracy. 28" kits are available unwelded to cut/customize the width.

    Show More
    Kits include:
    Ladder Bar
    Frame Rails    		Specially Engineered Profile Clears Suspension & Axle Components while Accommodating Low Ride Height & Wide Tires
    2" x 3" CrossmemberMandrel Formed for Uniform Profile; 3.5" Drop Center Makes Crossmember Adaptable to Almost Any Chassis; 60" Wide
    Diagonal Link3/4" OD DOM Steel with 1/2" Spherical Rod Ends for Easy In-Chassis Adjustment
    Driveshaft Loop1-1/8" OD Mandrel Formed Round Tube Contains Driveshaft During U-Joint Failure
    Shock CrossmemberHigh-Strength, Lightweight Tubular Design
    Ladder Bars32" Overall Length Includes Forged 3/4" Steel Rod Ends with Safety Brackets and 3/16" Mounting Plates
    Ladder LinkDouble Adjustable Ladder Bars; 32" Overall Length Includes 3/4" Forged Steel Rod Ends with Safety Cable, Bracket Option, and Mounting Gussets
    Coil-Over
    Shock Kit    		Provides 6" of Ride Height Adjustment
Part TypeSubframe
Product LineCompetition Engineering Ladder Bar/Link Rear Frame Rails & Kits
BrandCOMPETITION ENGINEERING
Package Height12.0
Package Width60.0
Package Length80.0
Weight130.0 PG
Part CategoryPerformance Parts
Driveshaft Safety Loop IncludedYes
Diagonal Link Diameter0.75 in (19.05 mm)
Crossmember IncludedYes
Frame Rail Material Thickness0.083 in (2.108 mm)
Frame Rail Height3 in (76.2 mm)
Crossmember Width60 in (1524 mm)
Rear Frame Rail Kit StyleLadder bar
Coil-Over Springs IncludedYes
Coil Spring Diameter2.5 in (63.5 mm)
Diagonal Link IncludedYes
Upper Shock Crossmember IncludedYes
QuantitySold as a kit
Coil Spring Height12 in (304.8 mm)
Coil-Over Spring Rate125 lbs./in.
Shock TypeStandard 3-way adjustable
Rod Ends IncludedYes
Rear Frame Rail Overall Width24 in (609.6 mm)
Rear End Housing IncludedNo
Shocks IncludedYes
Frame Rail Width2 in (50.8 mm)
Frame Rail FinishNatural
Factory Welded FrameYes
Upper And Lower Shock Mounts IncludedYes
Part FitmentSemi Universal
Frame Rail MaterialSteel
Vendor Part NumberC0423
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
