Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-0624

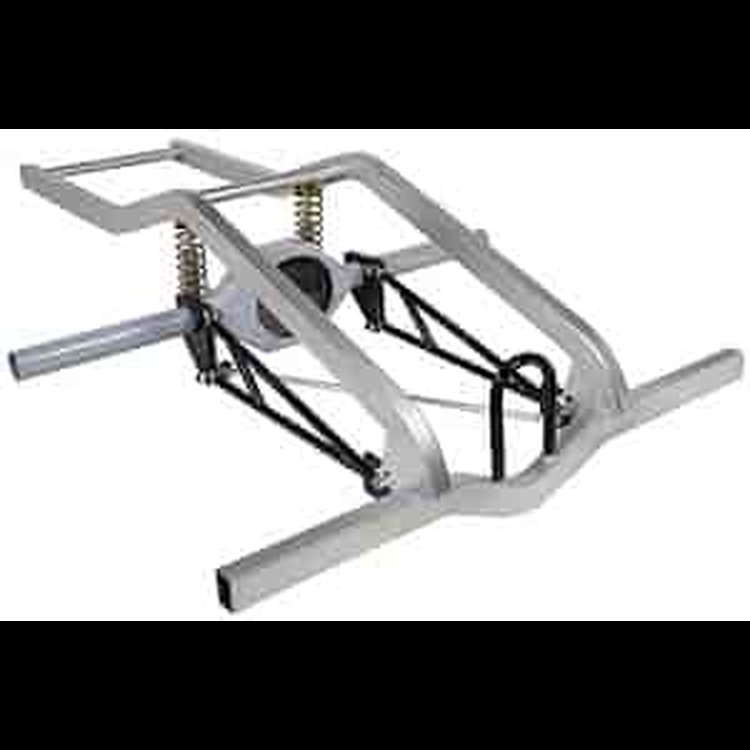

Ladder Bar Rear Frame Kit 26" Wide
$1,88899
Truck Freight
Ships on Sep 07, 2026
Lowest Price GuaranteeLadder Bar Rear Kits - 26"
- Ladder Bar Rear Frame Kit
- 26" Wide
- 3-Way Adjustable Shock
- Coil Spring Mount
- 150 lbs./in. Spring Rate
Frame Kit, Ladder Bar, 26 Inch, Coil Spring Mount, 1250-1450 lbs Coil Springs, Made to OrderLadder Bar Frame Kit, 26" Width, 3-Way Adjustable Shock,150 lb Spring Rate. Click for Disclaimer“ At this time we are not selling this item directly off our website. If you would like to purchase one, please visit our DEALER FINDER (attach link here)” ), if the item is not available through a dealer please contact our Customer Service Department for further assistance”. Frame Kit comes with the following items;• Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires• 2" x 3" Crossmember - Mandrel formed for uniform provide; 3.5" drop center makes it adaptable to virtually any chassis design; 60" wide• Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, in-chassis adjustment• Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure• Shock Crossmember - Tubular design provides high strength with light weight• Upper & Lower Shock Mounts - Provides 6" of ride height adjustment• Competition Ladder Bars, Part No. C2006 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop• 3-Way Adjustable Shocks, Part No. C2051 - 3-Way Adjustable Shocks with lower shock mounts that have 6" of adjustments in ½" increments• Springs - Matched to your specific rear vehicle weight. 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability
Part TypeSubframe
BrandCOMPETITION ENGINEERING
Package Height12.0
Package Width60.0
Package Length80.0
Weight130.0 PG
Part CategoryPerformance Parts
Driveshaft Safety Loop IncludedYes
Diagonal Link Diameter0.75 in (19.05 mm)
Crossmember IncludedYes
Frame Rail Material Thickness0.083 in (2.108 mm)
Frame Rail Height3 in (76.2 mm)
Crossmember Width60 in (1524 mm)
Rear Frame Rail Kit StyleLadder bar
Coil-Over Springs IncludedYes
Coil Spring Diameter2.5 in (63.5 mm)
Diagonal Link IncludedYes
Upper Shock Crossmember IncludedYes
QuantitySold as a kit
Coil Spring Height12 in (304.8 mm)
Coil-Over Spring Rate150 lbs./in.
Shock TypeStandard 3-way adjustable
Rod Ends IncludedYes
Rear Frame Rail Overall Width26 in (660.4 mm)
Rear End Housing IncludedNo
Shocks IncludedYes
Frame Rail Width2 in (50.8 mm)
Frame Rail FinishNatural
Factory Welded FrameYes
Upper And Lower Shock Mounts IncludedYes
Part FitmentUniversal
Frame Rail MaterialSteel
Vendor Part NumberC0624
Package Qty1
Package TypeEA
