Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-2422

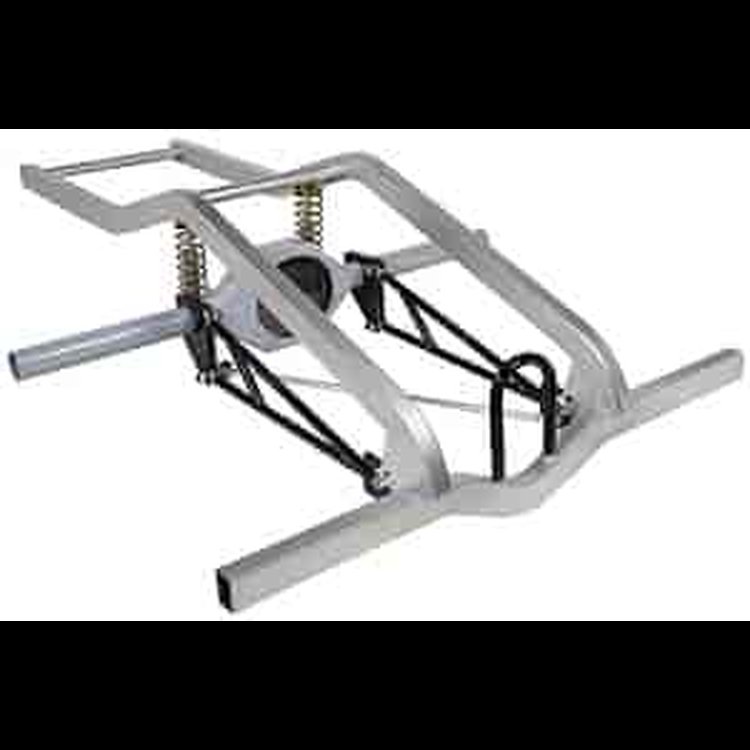

Ladder Link Frame Kit 24" Wide
$2,51699
Truck Freight
Ships on 09/10/2026
Lowest Price GuaranteeLadder Link Frame Kits - 24"
- Ladder Link Frame Kit
- 24" Wide
- 12-Way Adjustable Coil-Over Shock
- 85 lbs./in. Spring Rate
Frame Kit, Ladder Link, 24 Inch, Coil Over Shock, 85 lb Spring Rate, Made to OrderLadder Link Frame Kit, 24" Width, 12-Way Adj. Coil-Over Shock, 85 lb Spring Rate. Click for Disclaimer“ At this time we are not selling this item directly off our website. If you would like to purchase one, please visit our DEALER FINDER (attach link here)” ), if the item is not available through a dealer please contact our Customer Service Department for further assistance”. Frame Kit comes with the following items;• Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires• 2" x 3" Crossmember - Mandrel formed for uniform provide; 3.5" drop center makes it adaptable to virtually any chassis design; 60" wide• Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, in-chassis adjustment• Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure• Shock Crossmember - Tubular design provides high strength with light weight• Upper & Lower Shock Mounts - Provides 6" of ride height adjustment• Magnum Series Double Adjustable Ladder Bars, Part No. C2008 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop• 12-Way Adjustable Coil-Over Shocks, Part No. C2770 - Externally adjustable with CNC machined billet aluminum threaded body that allows the included spring seats to be threaded up or down for preload and ride height, shocks also have 1" wide top/bottom bearings• Springs - Matched to your specific rear vehicle weight. 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability
Part TypeSubframe
BrandCOMPETITION ENGINEERING
Package Height12.0
Package Width60.0
Package Length84.0
Weight130.0 PG
Part CategoryPerformance Parts
Driveshaft Safety Loop IncludedYes
Diagonal Link Diameter0.75 in (19.05 mm)
Crossmember IncludedYes
Frame Rail Material Thickness0.083 in (2.108 mm)
Frame Rail Height3 in (76.2 mm)
Crossmember Width60 in (1524 mm)
Rear Frame Rail Kit StyleLadder link
Coil-Over Springs IncludedYes
Coil Spring Diameter2.5 in (63.5 mm)
Diagonal Link IncludedYes
Upper Shock Crossmember IncludedYes
QuantitySold as a kit
Coil Spring Height12 in (304.8 mm)
Coil-Over Spring Rate85 lbs./in.
Shock TypeCoil-over
Rod Ends IncludedYes
Rear Frame Rail Overall Width24 in (609.6 mm)
Rear End Housing IncludedNo
Shocks IncludedYes
Frame Rail Width2 in (50.8 mm)
Frame Rail FinishNatural
Factory Welded FrameYes
Upper And Lower Shock Mounts IncludedYes
Coil-Over Shock TypeSingle-adjustable
Part FitmentUniversal
Frame Rail MaterialSteel
Vendor Part NumberC2422
Package Qty1
Package TypeEA
