Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

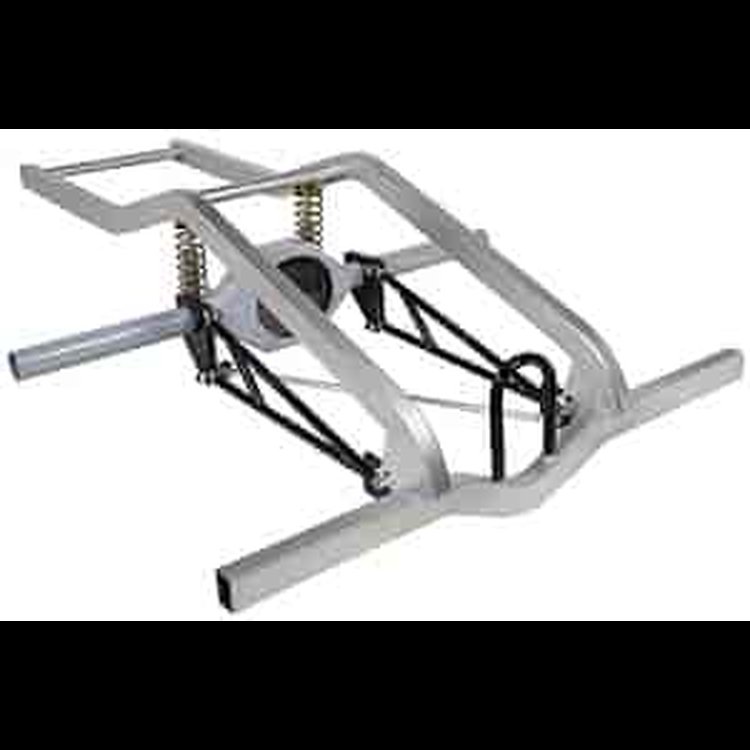

Ladder Link Frame Kits - 24"
- Ladder Link Frame Kit
- 24" Wide
- 12-Way Adjustable Coil-Over Shock
- Progressive Rate Springs
- 1,900 to 2,900 lbs./in. Spring Rate
Frame Kit, Ladder Link, 24 Inch, Coil Over Shock, 1900-2900 lbs Coil Springs, Made to OrderLadder Link Frame Kit, 24" Width, 12-Way Adj. Coil-Over Shock, Progressive Rate Spring for 1,900 lbs to 2,900 lbs overall weight. Click for Disclaimer“ At this time we are not selling this item directly off our website. If you would like to purchase one, please visit our DEALER FINDER (attach link here)” ), if the item is not available through a dealer please contact our Customer Service Department for further assistance”. Frame Kit comes with the following items;• Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires• 2" x 3" Crossmember - Mandrel formed for uniform provide; 3.5" drop center makes it adaptable to virtually any chassis design; 60" wide• Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, in-chassis adjustment• Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure• Shock Crossmember - Tubular design provides high strength with light weight• Upper & Lower Shock Mounts - Provides 6" of ride height adjustment• Magnum Series Double Adjustable Ladder Bars, Part No. C2008 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop• 12-Way Adjustable Coil-Over Shocks, Part No. C2770 - Externally adjustable with CNC machined billet aluminum threaded body that allows the included spring seats to be threaded up or down for preload and ride height, shocks also have 1" wide top/bottom bearings• Springs - 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability. Progressive Rate Springs for a vehicle with an overall weight range of 1,900-2,900 lbs.
Hook up and win... right out of the box!
These kits save hours of fabrication time. Each is welded on precise jigs for expert accuracy. 28" kits are available unwelded to cut/customize the width.
Show More
 |
| Kits include: | |
| Ladder Bar Frame Rails | Specially Engineered Profile Clears Suspension & Axle Components while Accommodating Low Ride Height & Wide Tires |
| 2" x 3" Crossmember | Mandrel Formed for Uniform Profile; 3.5" Drop Center Makes Crossmember Adaptable to Almost Any Chassis; 60" Wide |
| Diagonal Link | 3/4" OD DOM Steel with 1/2" Spherical Rod Ends for Easy In-Chassis Adjustment |
| Driveshaft Loop | 1-1/8" OD Mandrel Formed Round Tube Contains Driveshaft During U-Joint Failure |
| Shock Crossmember | High-Strength, Lightweight Tubular Design |
| Ladder Bars | 32" Overall Length Includes Forged 3/4" Steel Rod Ends with Safety Brackets and 3/16" Mounting Plates |
| Ladder Link | Double Adjustable Ladder Bars; 32" Overall Length Includes 3/4" Forged Steel Rod Ends with Safety Cable, Bracket Option, and Mounting Gussets |
| Coil-Over Shock Kit | Provides 6" of Ride Height Adjustment |
Part TypeSubframe
Product LineCompetition Engineering Ladder Bar/Link Rear Frame Rails & Kits
BrandCOMPETITION ENGINEERING
Package Height12.0
Package Width60.0
Package Length84.0
Weight130.0 PG
Part CategoryPerformance Parts
Part FitmentUniversal
Vendor Part NumberC2428
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
