Product Discontinued

COMPETITION ENGINEERINGPART NUMBER: 247-2824

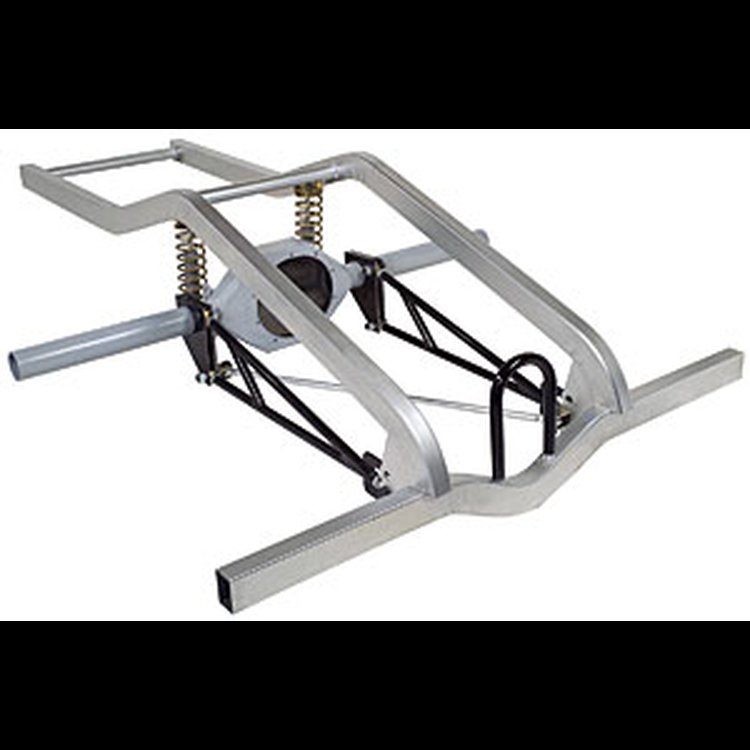

Ladder Link Frame Kit 28" Wide

Name: Ladder Link Frame Kit 28" Wide
Brand: COMPETITION ENGINEERING
SKU: 247-2824
Price: 1842.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ladder Link Frame Kits - 28"

28" Wide
3-Way Adjustable Shock
Coil Spring Mount
150 lbs./in. Spring Rate

Frame Kit, Ladder Link, 28 Inch, Coil Spring Mount, 150 lb Spring Rate, Made to OrderLadder Link Frame Kit, 28" Width, 3-Way Adjustable Shock, 150 lb Spring Rate. Click for Disclaimer“ At this time we are not selling this item directly off our website. If you would like to purchase one, please visit our DEALER FINDER (attach link here)” ), if the item is not available through a dealer please contact our Customer Service Department for further assistance”. Frame Kit comes with the following items;• Ladder Bar Frame Rails - Specially engineered profile clears suspension and axle components, while accommodating low ride height and wide tires• 2" x 3" Crossmember - Mandrel formed for uniform provide; 3.5" drop center makes it adaptable to virtually any chassis design; 60" wide• Diagonal Link - 3/4" O.D. DOM steel with 1/2" Spherical Rod Ends for easy, in-chassis adjustment• Driveshaft Loop - 1-1/8" O.D. mandrel formed Round Tube contains driveshaft during U-joint failure• Shock Crossmember - Tubular design provides high strength with light weight• Upper & Lower Shock Mounts - Provides 6" of ride height adjustment• Magnum Series Double Adjustable Ladder Bars, Part No. C2008 - Provide a solid connection between the rear axle housing and chassis, preventing wheel hop• 3-Way Adjustable Shocks, Part No. C2051 - 3-Way Adjustable Shocks with lower shock mounts that have 6" of adjustments in ½" increments• Springs - Matched to your specific rear vehicle weight. 2.5" I.D. x 12" long, premium-grade chrome silicone steel, powder coated for durability

Part TypeSubframe

BrandCOMPETITION ENGINEERING

Package Height12.0

Package Width60.0

Package Length84.0

Weight130.0 PG

Part CategoryPerformance Parts

Driveshaft Safety Loop IncludedYes

Diagonal Link Diameter0.75 in (19.05 mm)

Crossmember IncludedYes

Frame Rail Material Thickness0.083 in (2.108 mm)

Frame Rail Height3 in (76.2 mm)

Crossmember Width60 in (1524 mm)

Rear Frame Rail Kit StyleLadder link

Coil-Over Springs IncludedYes

Coil Spring Diameter2.5 in (63.5 mm)

Diagonal Link IncludedYes

Upper Shock Crossmember IncludedYes

QuantitySold as a kit

Coil Spring Height12 in (304.8 mm)

Coil-Over Spring Rate150 lbs./in.

Shock TypeStandard 3-way adjustable

Rod Ends IncludedYes

Rear Frame Rail Overall Width28 in (711.2 mm)

Rear End Housing IncludedNo

Shocks IncludedYes

Frame Rail Width2 in (50.8 mm)

Frame Rail FinishNatural

Factory Welded FrameYes

Upper And Lower Shock Mounts IncludedYes

Part FitmentUniversal

Frame Rail MaterialSteel

Vendor Part NumberC2824

Package Qty1

Package TypeEA
