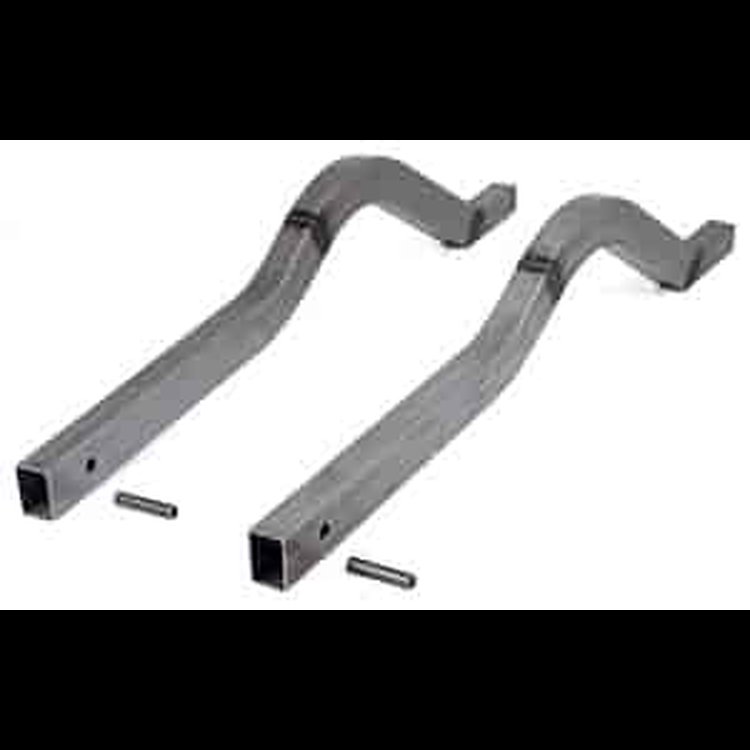

Formed Rear Frame Rails 1962-1967 Chevy II (excludes Wagon)

Name: Formed Rear Frame Rails 1962-1967 Chevy II (excludes Wagon)
Brand: COMPETITION ENGINEERING
SKU: 247-3034
Price: 416.99 USD
Availability: InStock

^$416⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

Formed Rear Frame Rails

1962-1967 Chevy II (excludes Wagon)

2 in. x 3 in. x .083 in. Walled Mild-Steel Tubing

Pair

3034 Features:

Includes (2) tube sleeves
Moves the leaf springs and frame rails inboard to provide additional tire clearance
Increases chassis strength for quicker vehicle reaction times

Notes:

Requires use of a fuel cell, rear fender wells, and an upper shock crossmember
Fits the stock floor contours - minor fabrication may be required
For use with Competition Engineering Weld-in Subframe Connectors 247-3014

Unmatched Rear Chassis Strength

Competition Engineering Rear Frame Rails replace the stock rails in subframe-equipped cars, eliminating the chance of bending and twisting under higher horsepower strain. Each rail is mandrel-bent on a computer-controlled machine to remove kinks and wrinkles often found in other frame rails. Only the finest mild steel tubing is used to guarantee unequaled strength and weight savings. Please note that some welding is required for installation.

Part TypeSubframe

Product LineCompetition Engineering Rear Frame Rails

BrandCOMPETITION ENGINEERING

Package Height6.25

Package Width14.75

Package Length66.0

Weight32.0 PG

Part CategoryPerformance Parts

Frame Rail Material Thickness0.083 in (2.108 mm)

Frame Rail Width2 in (50.8 mm)

Frame Rail FinishNatural

Frame Rail Height3 in (76.2 mm)
