Vehicle Info NeededCOMPETITION ENGINEERINGPART NUMBER: 247-4037

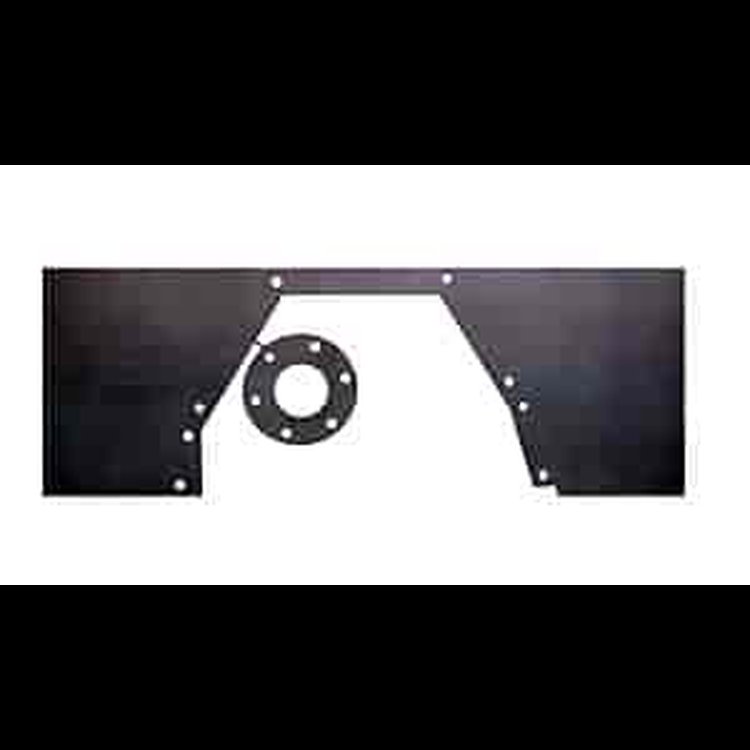

Mid-Mount Plate Ford 351M/400/429/460
$12499
1 left in stock
Ships Today
Lowest Price GuaranteeSteel Mid-Plates
- Mid-Mount Plate
- Ford 351M/400/429/460
- Dimensions: 30" L x 10-13/16" H
- .090'' Thick Steel
Mid Mount Plate; 0.090 in. Thick Steel; 30 in. Long x 10 13/16 in. Wide; Welding Required; Ford 351M; 400; 429; 460; Ford 351M, 400, 429, 460 Engines, Steel• Provides a solid connection between the transmission and the chassis• Eliminates torsional chassis stress, block twisting, and broken transmission cases• Includes flywheel shims to ensure accurate torque converter to front pump engagement• Allows easier transmission swaps and aids clutch operation• Universal frame mounts included• Designed on CAD equipment for a precise fit and easy installation• CNC laser cut to eliminate warpage from metal stamping• Universal Frame Mounts Included, welding Required• Dimensions: 30" x 10-13/16" x .090" thick
Add Strength and Versatility
Competition Engineering Mid-Mount Engine Plates are designed to work with front motor plates to eliminate torsional stress within the chassis. Installation of a mid-mount plate allows for easier transmission swaps, aligns the drivetrain to stop block twisting and broken transmission cases, and provides smooth clutch operation. Welding required.
Features:
- Available in T6 Aluminum or Steel
- Cad Designed for Precision Fit
- CNC Laser Cut
- Universal Frame Mounts Included
Note: Flywheel shims ensure accurate converter to front pump engagement (except 247-4030/4027/4028)
Part TypeMotor Plate
Product LineCompetition Engineering Mid-Mount Engine Plates
BrandCOMPETITION ENGINEERING
Package Height2.0
Package Width14.4
Package Length32.0
Weight7.15 PG
Part CategoryPerformance Parts
Thickness0.09 in (2.3 mm)
Motor Plate Width30 in (762 mm)
Motor Plate MaterialSteel
Motor Plate PositionMid-mount
Motor Plate FinishNatural
Motor Plate Height10.813 in (274.65 mm)
Welding RequiredYes
QuantitySold individually
Part FitmentSemi Universal
Vendor Part NumberC4037
Package Qty1
Package TypeEA
