Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

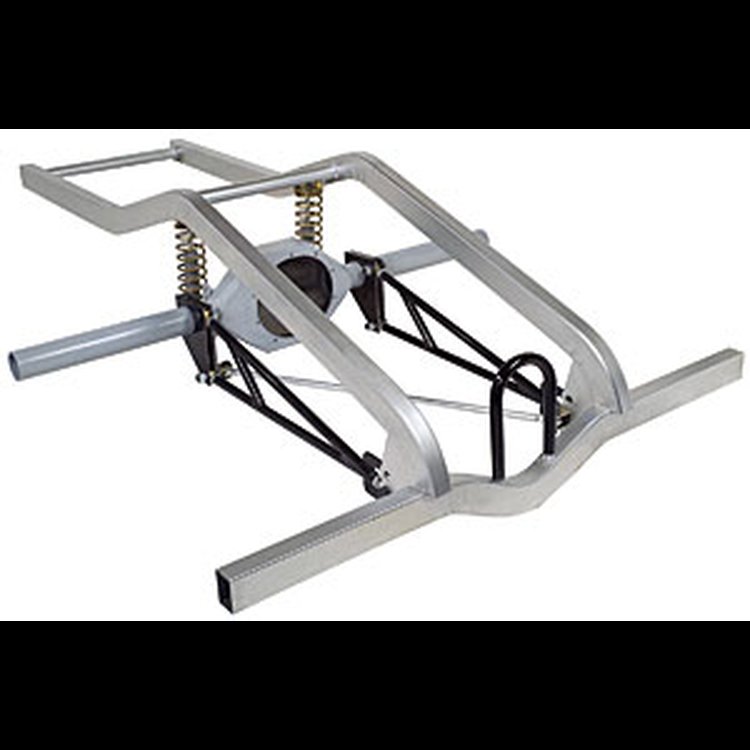

Ladder Bar Rear Kits - 28"
Not Welded
Not Welded
- Ladder Bar Rear Frame Kit
- Not Welded
- 28" Wide
- 3-Way Adjustable Shock
- Coil Spring Mount
- 150 lbs./in. Spring Rate
Part TypeSubframe
BrandCOMPETITION ENGINEERING
Package Height12.0
Package Width60.0
Package Length84.0
Weight130.0 PG
Part CategoryPerformance Parts
Driveshaft Safety Loop IncludedYes
Diagonal Link Diameter0.75 in (19.05 mm)
Crossmember IncludedYes
Frame Rail Material Thickness0.083 in (2.108 mm)
Frame Rail Height3 in (76.2 mm)
Crossmember Width60 in (1524 mm)
Rear Frame Rail Kit StyleLadder bar
Coil-Over Springs IncludedYes
Coil Spring Diameter2.5 in (63.5 mm)
Diagonal Link IncludedYes
Upper Shock Crossmember IncludedYes
QuantitySold as a kit
Coil Spring Height12 in (304.8 mm)
Coil-Over Spring Rate150 lbs./in.
Shock TypeStandard 3-way adjustable
Rod Ends IncludedYes
Rear Frame Rail Overall Width28 in (711.2 mm)
Rear End Housing IncludedNo
Shocks IncludedYes
Frame Rail Width2 in (50.8 mm)
Frame Rail FinishNatural
Factory Welded FrameNo
Upper And Lower Shock Mounts IncludedYes
Frame Rail MaterialSteel
Vendor Part NumberU024
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
