Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

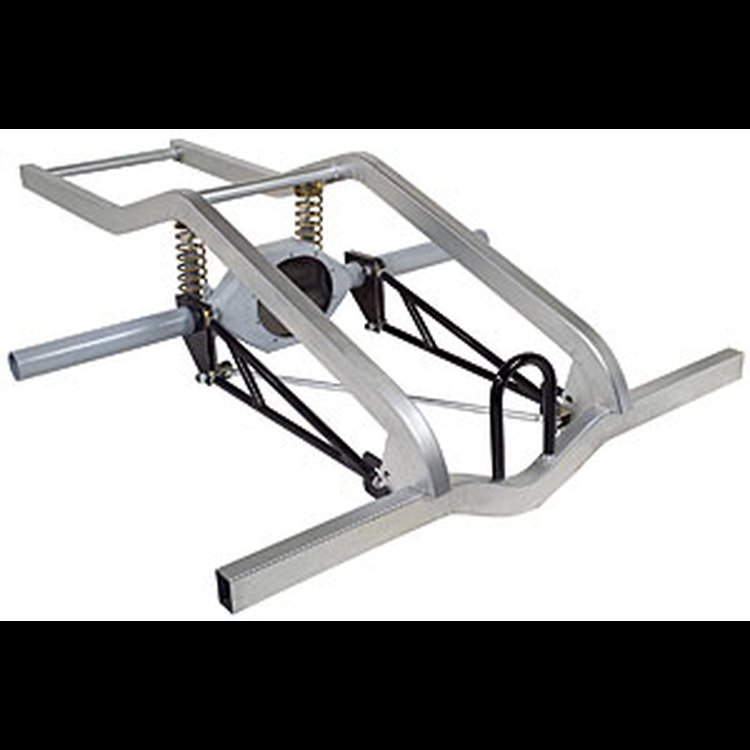

Ladder Link Frame Kits - 28"
Not Welded
Not Welded
- Ladder Link Frame Kit
- Not Welded
- 28" Wide
- 3-Way Adjustable Shock
- Coil Spring Mount
- 85 lbs./in. Spring Rate
Hook up and win... right out of the box!
These kits save hours of fabrication time. Each is welded on precise jigs for expert accuracy. 28" kits are available unwelded to cut/customize the width.
Show More
 |
| Kits include: | |
| Ladder Bar Frame Rails | Specially Engineered Profile Clears Suspension & Axle Components while Accommodating Low Ride Height & Wide Tires |
| 2" x 3" Crossmember | Mandrel Formed for Uniform Profile; 3.5" Drop Center Makes Crossmember Adaptable to Almost Any Chassis; 60" Wide |
| Diagonal Link | 3/4" OD DOM Steel with 1/2" Spherical Rod Ends for Easy In-Chassis Adjustment |
| Driveshaft Loop | 1-1/8" OD Mandrel Formed Round Tube Contains Driveshaft During U-Joint Failure |
| Shock Crossmember | High-Strength, Lightweight Tubular Design |
| Ladder Bars | 32" Overall Length Includes Forged 3/4" Steel Rod Ends with Safety Brackets and 3/16" Mounting Plates |
| Ladder Link | Double Adjustable Ladder Bars; 32" Overall Length Includes 3/4" Forged Steel Rod Ends with Safety Cable, Bracket Option, and Mounting Gussets |
| Coil-Over Shock Kit | Provides 6" of Ride Height Adjustment |
Part TypeSubframe
Product LineCompetition Engineering Ladder Bar/Link Rear Frame Rails & Kits
BrandCOMPETITION ENGINEERING
Package Height12.0
Package Width60.0
Package Length84.0
Weight130.0 PG
Part CategoryPerformance Parts
Driveshaft Safety Loop IncludedYes
Diagonal Link Diameter0.75 in (19.05 mm)
Crossmember IncludedYes
Frame Rail Material Thickness0.083 in (2.108 mm)
Frame Rail Height3 in (76.2 mm)
Crossmember Width60 in (1524 mm)
Rear Frame Rail Kit StyleLadder link
Coil-Over Springs IncludedYes
Coil Spring Diameter2.5 in (63.5 mm)
Diagonal Link IncludedYes
Upper Shock Crossmember IncludedYes
QuantitySold as a kit
Coil Spring Height12 in (304.8 mm)
Coil-Over Spring Rate85 lbs./in.
Shock TypeStandard 3-way adjustable
Rod Ends IncludedYes
Rear Frame Rail Overall Width28 in (711.2 mm)
Rear End Housing IncludedNo
Shocks IncludedYes
Frame Rail Width2 in (50.8 mm)
Frame Rail FinishNatural
Factory Welded FrameNo
Upper And Lower Shock Mounts IncludedYes
Frame Rail MaterialSteel
Vendor Part NumberU221
Package Qty1
Package TypeEA
