Product Discontinued
CRANE CAMSPART NUMBER: 271-110981

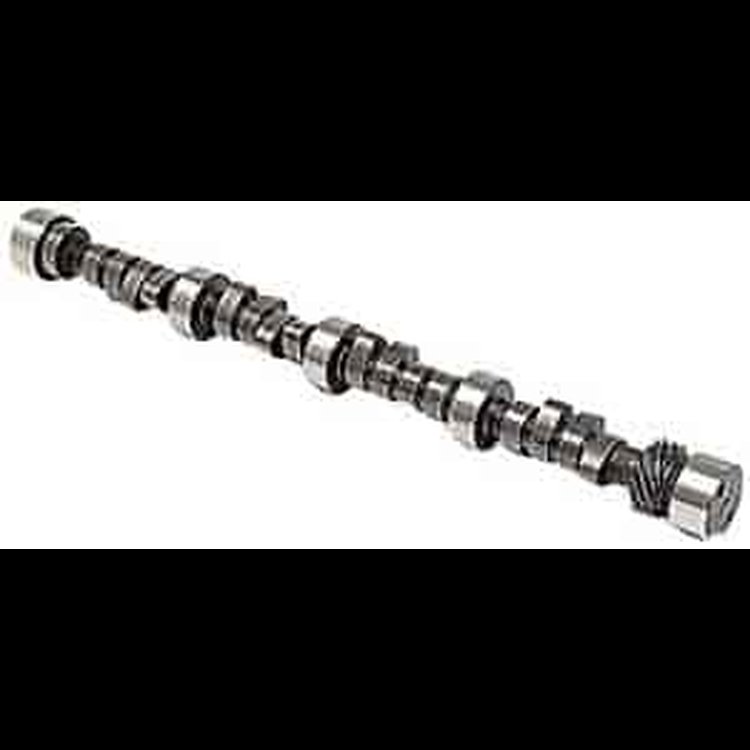

Mechanical Flat Tappet Camshaft Lift: .536"/.554" Advertised Duration: 288°/296° RPM Range: 3800-7200
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1957-87 Small Block Chevy 262-400
- Mechanical Flat Tappet Camshaft
Lift: .536"/.554"
Advertised Duration: 288°/296°
RPM Range: 3800-7200
Performance usage, good mid range torque and HP, bracket racing; Pro, Pro ET, Super ET, etc., auto trans w/ race converter, oval track; Late Model, Sportsman, I.M.C.A., etc., 3/8- 1/2 mile, 11.5 to 12.5 compression ratio advised.
| Grind Number: | F-252/3574-2S-6 |
| Operating Range: | 3800-7200 RPM |
| Duration Advertised: | 288° Intake / 296° Exhaust |
| Duration @ .050' Lift: | 252° Intake / 260° Exhaust |
| Valve Lift w/1.5 Rockers: | .536' Intake / .554' Exhaust |
| Lobe Separation Angle: | 106° |
| Max Lift Angle: | 104° ATDC Intake / 108° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 22° BTDC (opens) / 50° ABDC (closes) Exhaust - 58° BBDC (opens) / 22° ATDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length22.5
Weight8.4 PG
Vendor Part Number110981
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
