Product Discontinued

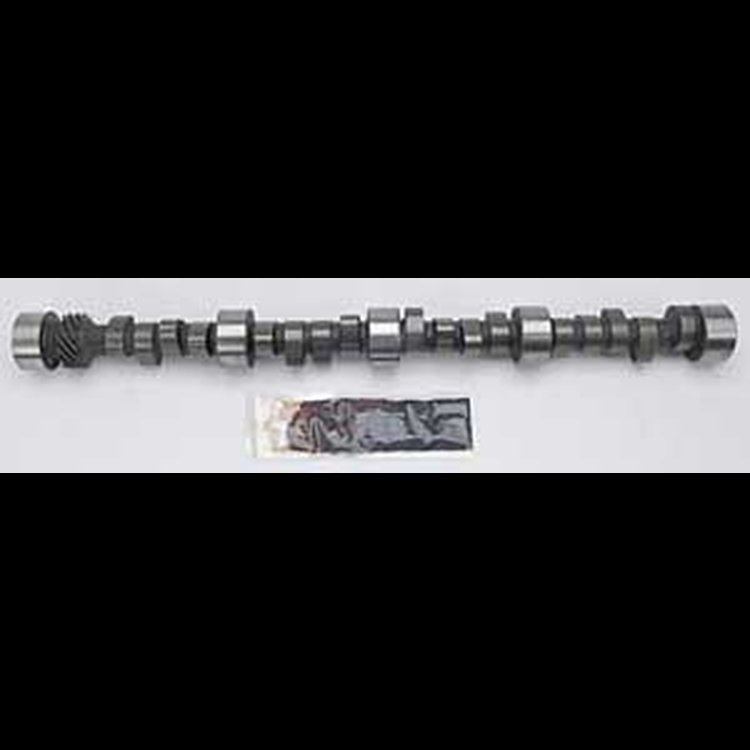

CRANE CAMSPART NUMBER: 271-131541
Mechanical Flat Tappet Camshaft Lift: .648" /.669" Duration: 304°/312° RPM Range: 4600-7800
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1967-95 Big Block Chevy 396-454
- Mechanical Flat Tappet Camshaft
Lift: .648''/.669''
Duration: 304°/312°
RPM Range: 4600-7800
Moderate competition only, good upper RPM HP, bracket racing, auto trans w/race converter, 12.0 minimum compression ratio advised.
| Grind Number: | F-268/3814-2S-8 |
| Operating Range: | 4600-7800 RPM |
| Duration Advertised: | 304° Intake / 312° Exhaust |
| Duration @ .050' Lift: | 268° Intake / 276° Exhaust |
| Valve Lift w/1.7 Rockers: | .648' Intake / .669' Exhaust |
| Lobe Separation Angle: | 108° |
| Max Lift Angle: | 105° ATDC Intake / 111° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 29° BTDC (opens) / 59° ABDC (closes) Exhaust - 69° BBDC (opens) / 27° ATDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length25.5
Weight10.68 PG
Vendor Part Number131541
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
