Product Discontinued
CRANE CAMSPART NUMBER: 271-133841

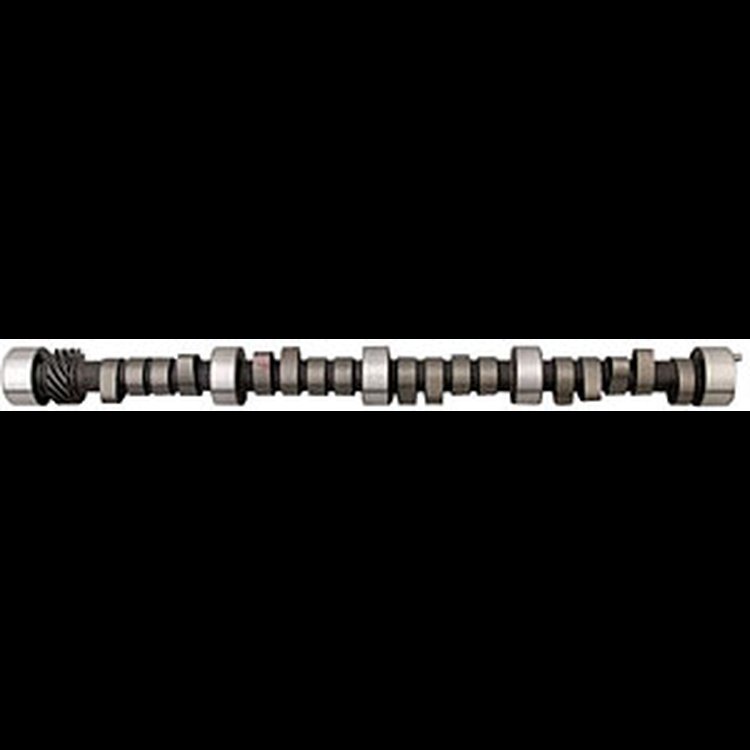

Mechanical Flat Tappet Camshaft Lift: .544"/.567" Advertised Duration: 304°/314° RPM Range: 2800-6600
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1967-95 Big Block Chevy 396-454
- Mechanical Flat Tappet Camshaft
Lift: .544"/.567"
Advertised Duration: 304°/314°
RPM Range: 2800-6600
*Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.
FAIR IDLE, MODERATE PERFORMANCE USAGE, GOOD LOW AND MID-RANGE HP, BRACKET RACING, AUTO TRANS W/2000+ CONVERTER, 3400-3800 CRUISE RPM, 10.5 TO 11.5 COMPRESSION RATIO ADVISED.
| Grind Number: | F-304-2 (replaces CC-304-2) |
| Operating Range: | 2800-6600 RPM |
| Duration Advertised: | 304° Intake / 314° Exhaust |
| Duration @ .050' Lift: | 238° Intake / 248° Exhaust |
| Valve Lift w/1.7 Rockers: | .544' Intake / .567' Exhaust |
| Lobe Separation Angle: | 114° |
| Max Lift Angle: | 109° ATDC Intake / 119° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 10° BTDC (opens) / 48° ABDC (closes) Exhaust - 63° BBDC (opens) / 5° ATDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length25.2
Weight10.36 PG
Vendor Part Number133841
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
