Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Big Block Chevy 396-454ci 1967-95

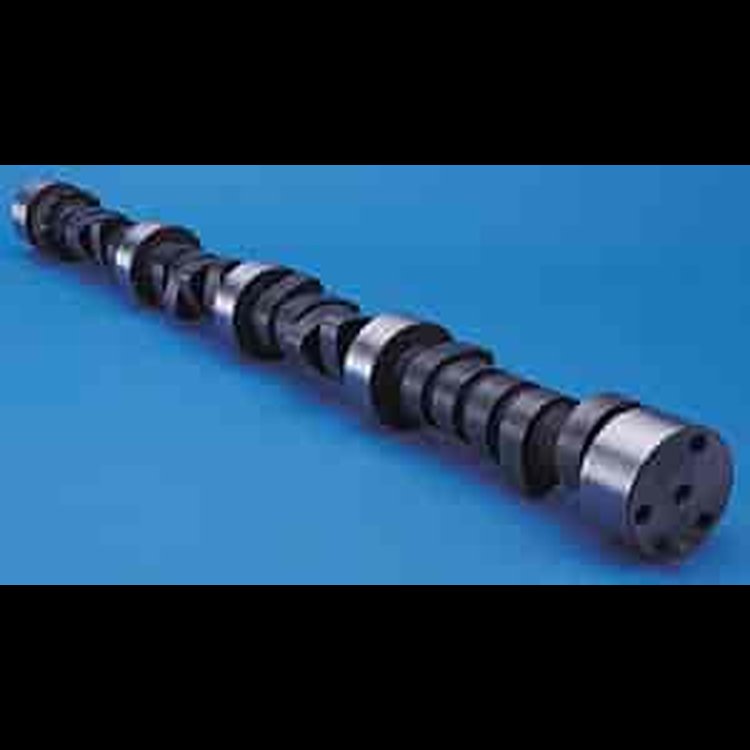

- Hydraulic Flat Tappet Camshaft
- Click More Info for specifications
- Notes
- 1980 and later engines should use 271-96801 springs and 271-99957 retainers at an assembly height of 1.800".
- Excellent low end torque and HP, smooth idle, daily usage, off road, towing, economy, also mild turbocharged, 2200-2600 cruise RPM, 8.0 to 9.5 compression ratio advised. (50 state legal, 94 and earlier, C.A.R.B. E.O. D- 225- 51).
Grind Number H-260-2 (Replaces HMV-260-2) Operating Range 1000-4800 RPM Duration Advertised .260°/.272° Duration @ .050" Lift 204° Intake/216° Exhaust Valve Lift with 1.7 Rockers .484" Intake/.515" Exhaust Lobe Separation Angle 112° Max Lift Angle Intake: 107° ATDC
Exhaust: 117° BTDCOpen/Close @ .050" Cam Lift Intake: 5° ATDC (opens)
29° ABDC (closes)
Exhaust: 45° BBDC (opens)
9° BTDC (closes)
Lift: .484''/.515''
Advertised Duration: .260°/.272°
RPM Range: 1000-4800
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length25.0
Weight10.58 PG
Vendor Part Number133901
Package Qty1
Package TypeEA
