Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1965-96 Big Block Chevy 396-454

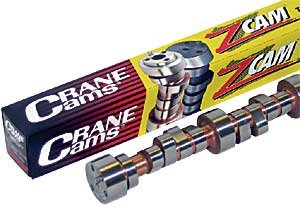

- Hydraulic Roller Tappet ZCamshaft
- Click More Info for specifications
Grind Number ZHR-296-2S-12 IG Operating Range 2200-6000 RPM Duration Advertised .296°/.304° Duration @ .050" Lift 234° Intake/242° Exhaust Valve Lift with 1.7 Rockers .359" Intake/.372" Exhaust Lobe Separation Angle 112° Max Lift Angle Intake: 107° BTDC
Exhaust: 117° BBDCOpen/Close @ .050" Cam Lift Intake: 10° BTDC (opens)
44° ABDC (closes)
Exhaust: 58° BBDC (opens)
4° ATDC (closes)Note: In order to use this camshaft in 1965-66 396 and 427 blocks, it is necessary to machine a 3/16" wide x 7/64" deep groove in the cam's rear main journal to allow oil flow to the top of the engine.
Lift: .610''/.632''
Advertised Duration: .296°/.304°
RPM Range: 2200-6000
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.7
Package Length25.0
Weight10.85 PG
Vendor Part Number139021
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
