Product Discontinued
CRANE CAMSPART NUMBER: 271-1449591

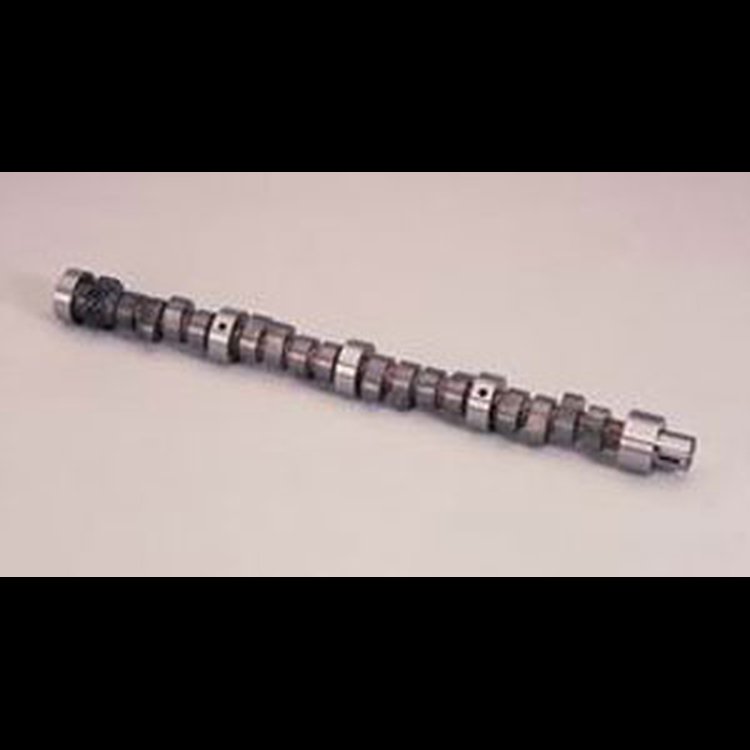

PowerMax Hydraulic Roller Tappet Camshaft Lift: .551" /.551" Duration: 286°/286° RPM Range: 2600-6100
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 1997-Up 350ci/5.7L LS1 & 1999-Up 4800, 5300, and 6000 Vortec
- PowerMax Hydraulic Roller Tappet Camshaft
Lift: .551''/.551''
Duration: 286°/286°
RPM Range: 2600-6100
Firing Order: 1-8-7-2-6-5-4-3
*Note: 1997-Up GM 5.7L LS1, 1988-99 305 and 350 V8 (and some 1987 350 V8) engines, and the 1957-87 262-400 V8 engines, each use different configuration camshaft cores, and cannot be interchanged.
| Grind Number: | HR-224/3241-14 |
| Operating Range: | 2600-6100 RPM |
| Duration Advertised: | 286° Intake / 286° Exhaust |
| Duration @ .050' Lift: | 224° Intake / 224° Exhaust |
| Valve Lift w/1.7 Rockers: | .551' Intake / .551' Exhaust |
| Lobe Separation Angle: | 114° |
| Max Lift Angle: | 109° ATDC Intake / 119° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 3° BTDC (opens) / 41° ABDC (closes) Exhaust - 51° BBDC (opens) / (7°) BTDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length22.5
Weight13.0 PG
Vendor Part Number1449591
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
