Product Discontinued
CRANE CAMSPART NUMBER: 271-168741

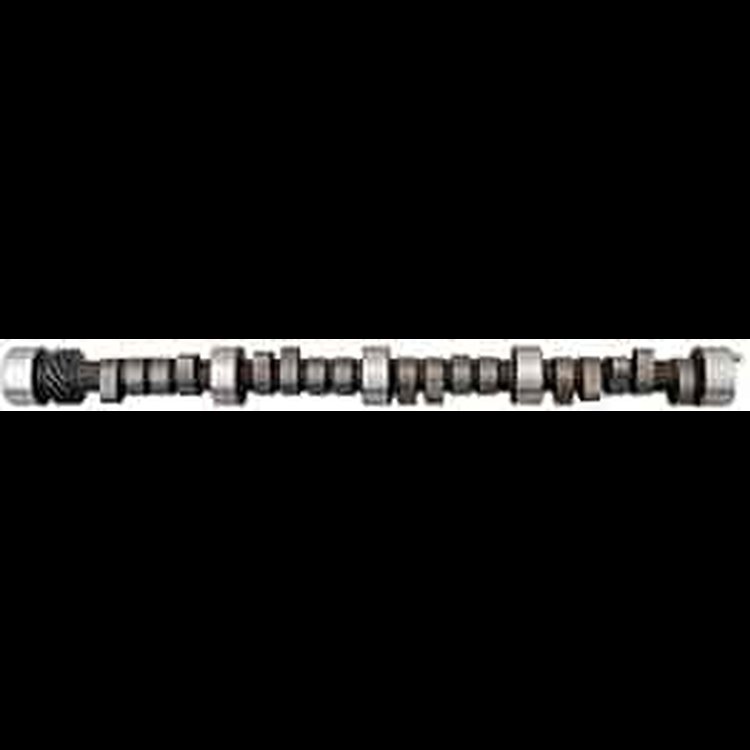

PowerMax Hydraulic Roller Tappet Camshaft Lift: .610" /.632" Duration: 298°/306° RPM Range: 3000-6500
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 454-502ci Gen VI Big Block 1996-2000
- PowerMax Hydraulic Roller Tappet Camshaft
Lift: .610''/.632''
Duration: 298°/306°
RPM Range: 3000-6500
*Note: Crane's long travel hydraulic roller lifters p/n 270-16535-16, must be used with greater than .570' lift camshafts to prevent alignment bar disengagement.
**Note: The 1996-2000 Gen VI engines can use these camshafts and components if they are converted to adjustable rocker arms by installing p/n 270-99152-16 rocker arm studs (no machining required) and factory pushrod guideplates, providing open valve spring pressures do not exceed 480 pounds.
***Note Camshaft incorporates an integral cast iron distributor drive gear, aluminum-bronze distributor drive gear not required.
ROUGH IDLE, PERFORMANCE USAGE, GOOD MID AND UPPER RPM TORQUE AND HP, MILD BRACKET RACING, AUTO TRANS W/ 3000+ CONVERTER, MARINE PERF., 3400-3800 CRUISE RPM, 10.0 TO 11.5 COMPRESSION RATIO ADVISED.
| Grind Number: | HR-236/359-2S-12 IG |
| Operating Range: | 3000-6500 RPM |
| Duration Advertised: | 298° Intake / 306° Exhaust |
| Duration @ .050' Lift: | 236° Intake / 244° Exhaust |
| Valve Lift w/1.7 Rockers: | .610' Intake / .632' Exhaust |
| Lobe Separation Angle: | 112° |
| Max Lift Angle: | 107° ATDC Intake / 117° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 11° BTDC (opens) / 45° ABDC (closes) Exhaust - 59° BBDC (opens) / 5° ATDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.75
Package Width2.87
Package Length24.5
Weight10.55 PG
Vendor Part Number168741
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
