Crane Cams Hydraulic Flat Tappet Camshafts

Name: Crane Cams Hydraulic Flat Tappet Camshafts
Brand: CRANE CAMS
SKU: 271-254112
Price: 213.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy 60° 2.8L/3.1L V6 1980-96

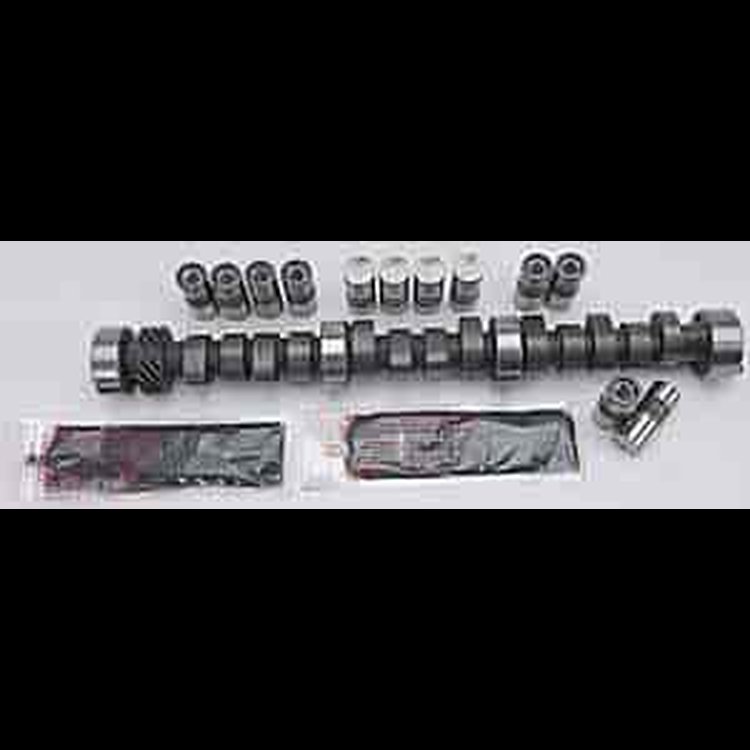

Camshaft & Lifter Kit

Lift:

Advertised Duration:

RPM Range:

Click More Info for specifications

Notes:

Low and mid-range torque and HP, great choice for cars and 4x4 trucks, highway or off road. Works really great for trailer towing.

Grind Number	Powermax 2020
Operating Range	800-4200 RPM
Duration Advertised	.258°/.264°
Duration @ .050" Lift	198° Intake/204° Exhaust
Valve Lift with 1.6 Rockers	.401" Intake/.423" Exhaust
Lobe Separation Angle	104°
Max Lift Angle	Intake: 100° ATDC Exhaust: 108° BTDC
Open/Close @ .050" Cam Lift	Intake: 1° ATDC (opens) 19° ABDC (closes) Exhaust: 30° BBDC (opens) 6° BTDC (closes)

The most popular OE camshaft type through the late 1980s, hydraulic lifter profiles can provide a power curve that tops out just over 7000 RPM when used with high-performance hydraulic lifters. Also easy to maintain, hydraulic cams range from aggressive (rough idle) to towing (improved bottom-end torque).

Part TypeCamshaft Kit

Product LineCrane Cams Hydraulic Flat Tappet Camshafts

BrandCRANE CAMS

Package Height2.5

Package Width3.9

Package Length25.9

Weight10.0 PG

Vendor Part NumberBBLV-254112

Package Qty1

Package TypeEA
