Crane Cams Hydraulic Flat Tappet Camshafts

Name: Crane Cams Hydraulic Flat Tappet Camshafts
Brand: CRANE CAMS
SKU: 271-254122
Price: 213.37 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy 60° 2.8L/3.1L V6 1980-96

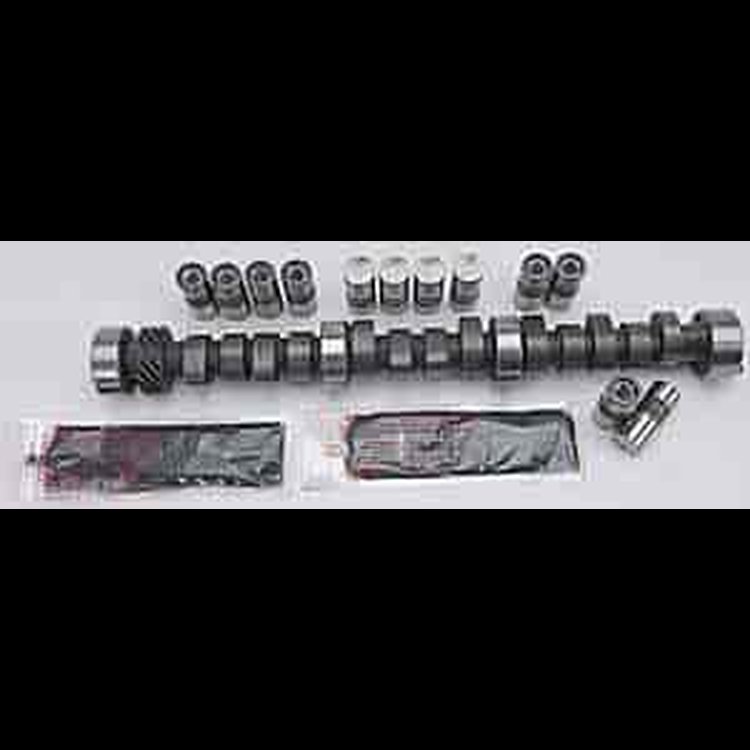

Camshaft & Lifter Kit

Lift:

Advertised Duration:

RPM Range:

Click More Info for specifications

Notes:

Mid and upper range torque and HP improver for cars, especially Camaros, S-10 pickups, Blazers, Jimmy's, etc., and all performance applications.

Grind Number	Powermax 2030
Operating Range	1200-4600 RPM
Duration Advertised	.264°/.274°
Duration @ .050" Lift	204° Intake/214° Exhaust
Valve Lift with 1.5 Rockers	.423" Intake/.423" Exhaust
Lobe Separation Angle	109°
Max Lift Angle	Intake: 105° ATDC Exhaust: 113° BTDC
Open/Close @ .050" Cam Lift	Intake: 3° ATDC (opens) 27° ABDC (closes) Exhaust: 40° BBDC (opens) 6° BTDC (closes)

The most popular OE camshaft type through the late 1980s, hydraulic lifter profiles can provide a power curve that tops out just over 7000 RPM when used with high-performance hydraulic lifters. Also easy to maintain, hydraulic cams range from aggressive (rough idle) to towing (improved bottom-end torque).

Part TypeCamshaft Kit

Product LineCrane Cams Hydraulic Flat Tappet Camshafts

BrandCRANE CAMS

Package Height2.25

Package Width6.0

Package Length26.0

Weight11.13 PG

Vendor Part Number254122

Package Qty1

Package TypeEA
