Product Discontinued
CRANE CAMSPART NUMBER: 271-343901

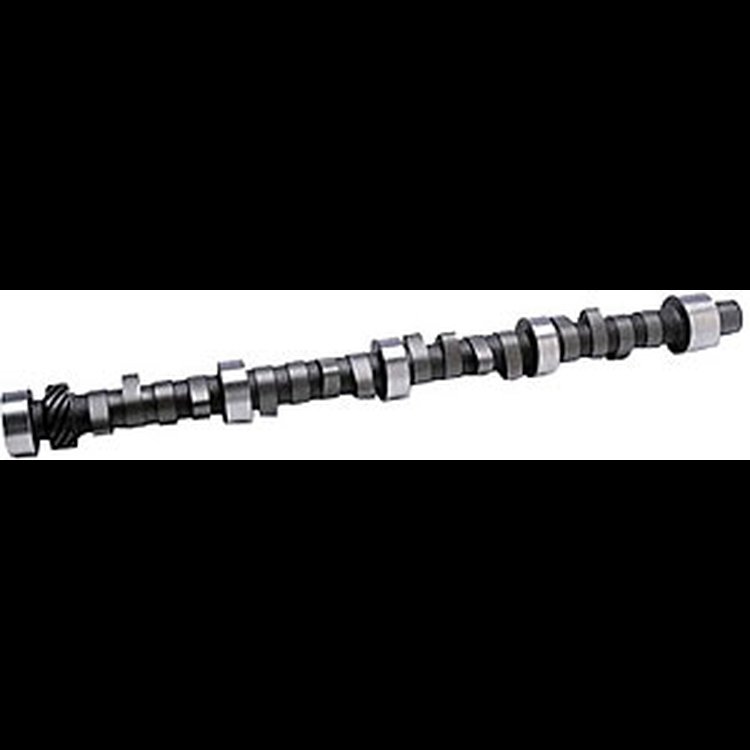

PowerMax Hydraulic Flat Tappet Camshaft Only Lift: .501" /.533" Duration: 260°/272° RPM Range: 1200-4800
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford/Mercury 330-430ci ''FE Series'' 1963-76
- PowerMax Hydraulic Flat Tappet Camshaft Only
Lift: .501''/.533''
Duration: 260°/272°
RPM Range: 1200-4800
*Note: Specify if late 1962 406ci or 1963-76 block is used, as the cam is different than the one used in 1958-62 blocks.
SMOOTH IDLE, DAILY USAGE, OFF ROAD, TOWING, ECONOMY, ALSO MILD TURBO-CHARGED, 2200-2600 CRUISE RPM, 8.0 TO 9.5 COMPRESSION RATIO ADVISED.
| Grind Number: | H-260-2 (Replaces HMV-260-2) |
| Operating Range: | 1500-4500 RPM |
| Duration Advertised: | 260° Intake / 272° Exhaust |
| Duration @ .050' Lift: | 204° Intake / 216° Exhaust |
| Valve Lift w/1.76 Rockers: | .501' Intake / .533' Exhaust |
| Lobe Separation Angle: | 112° |
| Max Lift Angle: | 107° ATDC Intake / 117° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - (5°) ATDC (opens) / 29° ABDC (closes) Exhaust - 45° BBDC (opens) / (9°) BTDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length22.5
Weight11.0 PG
Vendor Part Number343901
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
