Product Discontinued
CRANE CAMSPART NUMBER: 271-343942

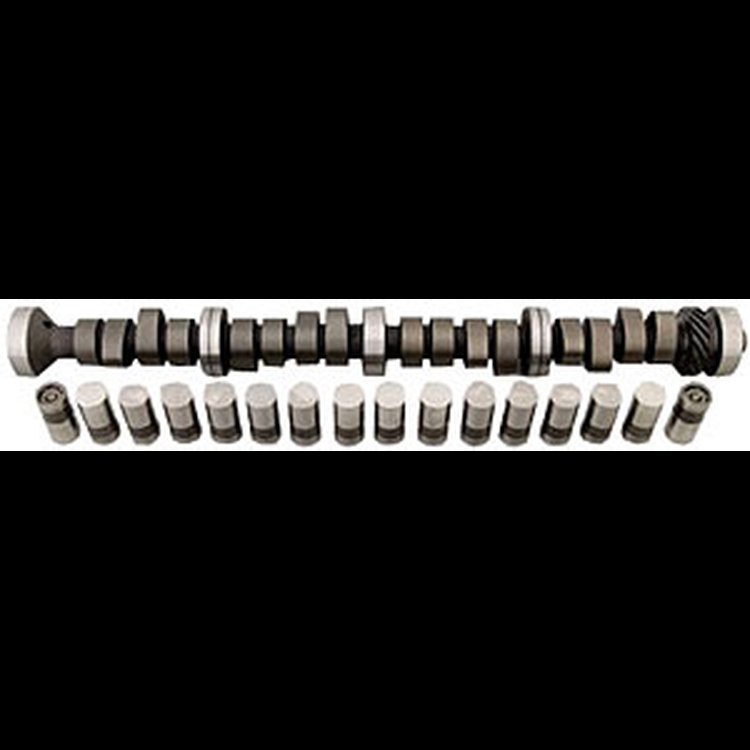

PowerMax Hydraulic Flat Tappet Cam & Lifter Kit Lift: .533" /.563" Duration: 272°/284° RPM Range: 1800-5200
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford/Mercury 330-430ci ''FE Series'' 1963-76
- PowerMax Hydraulic Flat Tappet Cam & Lifter Kit
Lift: .533''/.563''
Duration: 272°/284°
RPM Range: 1800-5200
GOOD IDLE, DAILY USAGE AND OFF ROAD, TOWING, PERFORMANCE AND FUEL EFFICIENCY, 2600-3000 CRUISE RPM, 8.75 TO 10.75 COMPRESSION RATIO ADVISED.
| Grind Number: | H-272-2 (Replaces HMV-272-2) |
| Operating Range: | 2000-5000 RPM |
| Duration Advertised: | 272° Intake / 284° Exhaust |
| Duration @ .050' Lift: | 216° Intake / 228° Exhaust |
| Valve Lift w/1.76 Rockers: | .533' Intake / .563' Exhaust |
| Lobe Separation Angle: | 112° |
| Max Lift Angle: | 107° ATDC Intake / 117° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 1° BTDC (opens) / 35° ABDC (closes) Exhaust - 51° BBDC (opens) / (3°) BTDC (closes) |
- Crane PowerMax cam and lifter kits feature cams with lobe patterns designed to balance intake and exhaust flow. Their unique profiles produce maximum low, mid, and upper rpm power. Many PowerMax cams are designed to maximize the effects of nitrous oxide, supercharger, and turbocharger systems. These kits are available in both hydraulic and mechanical lift versions and are also available without lifters packaged as "Cam Only".
Part TypeCamshaft Kit
Product LineCrane Cams PowerMax Cam and Lifter Kits
BrandCRANE CAMS
Package Height2.5
Package Width3.8
Package Length25.7
Weight13.96 PG
Vendor Part Number343942
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
