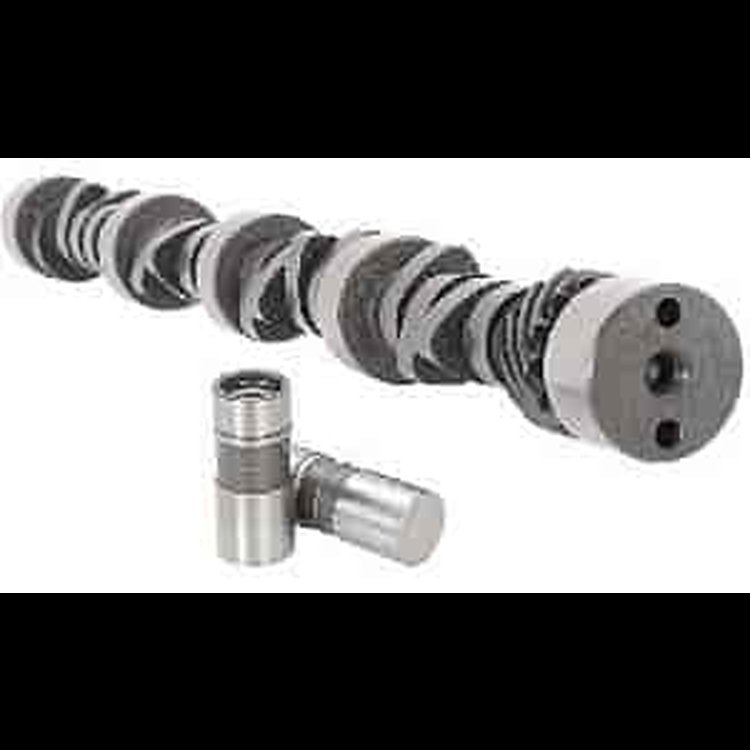

Crane Cams Hydraulic Flat Tappet Camshafts

Name: Crane Cams Hydraulic Flat Tappet Camshafts
Brand: CRANE CAMS
SKU: 271-363512
Price: 216.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Ford 221-302 V8 1962-87

Camshaft & Lifter Kit

Lift:

Advertised Duration:

RPM Range:

Click More Info for specifications

Notes:

Firing Order: 1-5-4-2-6-3-7-8

Good low end and mid range torque and HP, good idle, daily usage and off road, towing, performance and fuel efficiency, 2600-3000 cruise RPM, 8.75 to 10.5 compression ratio advised, w/centrifugal or small Roots supercharger, 8 lbs. maximum boost w/8.5 max.

Grind Number	Z-268-2
Operating Range	1800-5600 RPM
Duration Advertised	.268°/.274°
Duration @ .050" Lift	218° Intake/224° Exhaust
Valve Lift with 1.6 Rockers	.490" Intake/.504" Exhaust
Lobe Separation Angle	112°
Max Lift Angle	Intake: 107° ATDC Exhaust: 117° BTDC
Open/Close @ .050" Cam Lift	Intake: 2° BTDC (opens) 36° ABDC (closes) Exhaust: 49° BBDC (opens) 5° BTDC (closes)

The most popular OE camshaft type through the late 1980s, hydraulic lifter profiles can provide a power curve that tops out just over 7000 RPM when used with high-performance hydraulic lifters. Also easy to maintain, hydraulic cams range from aggressive (rough idle) to towing (improved bottom-end torque).

Part TypeCamshaft Kit

Product LineCrane Cams Hydraulic Flat Tappet Camshafts

BrandCRANE CAMS

Package Height2.5

Package Width6.0

Package Length26.0

Weight15.39 PG

Vendor Part Number363512

Package Qty1

Package TypeEA
