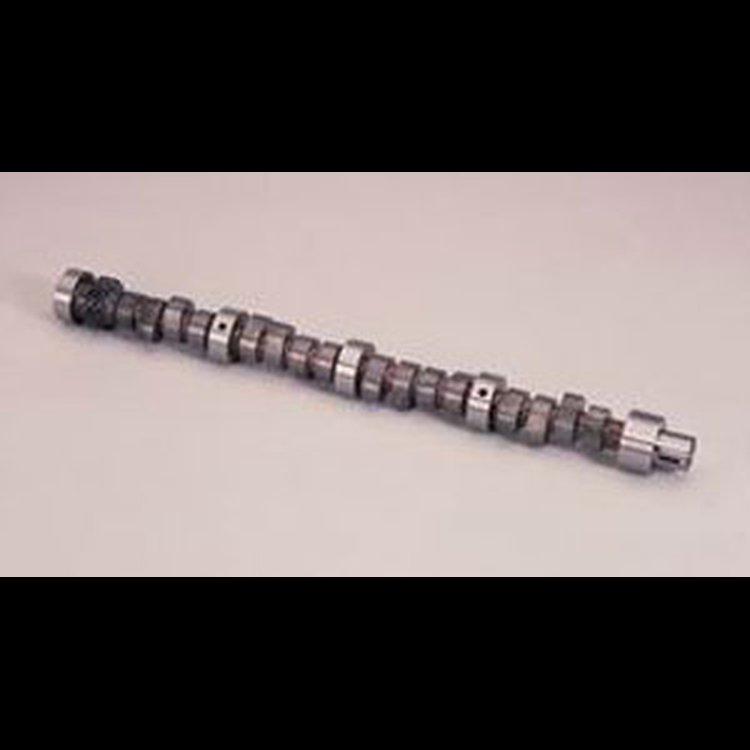

PowerMax Hydraulic Roller Tappet Camshaft Lift: .445" /.470" Duration: 260°/270° RPM Range: 1000-4500

Name: PowerMax Hydraulic Roller Tappet Camshaft Lift: .445" /.470" Duration: 260°/270° RPM Range: 1000-4500
Brand: CRANE CAMS
SKU: 271-364211
Price: 415.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 1962-Up 221-302ci

Lift:

Duration:

RPM Range:

Part Number:

364211

Grind Number:

2020

Engine Identification:
Start Yr.	End Yr.	Make	Cyl	Description
1962	Up	FORD-MERCURY	8	SMOOTH IDLE, DAILY USAGE, TOWING, PERFORMANCE AND FUEL EFFICIENCY, GOOD LOW AND MID-RANGE TORQUE AND HP IN PASSENGER CARS. BASIC RPM 1000-4500
Engine Size		Configuration
221-302 C.I.		V

Valve Setting:

Intake

.000

Exhaust

.000

HOT

Lift:	Intake @Cam	278	@Valve	445	All Lifts are based on zero lash and theoretical rocker arm ratios.
	Exhaust @ Cam	294	@Valve	470
	Rocker Arm Ratio	1.6

Cam Timing:	TAPPET	@----
Lift:		Opens	Closes	ADV Duration
	Intake	----	----	260.0 °
	Exhaust	----	----	270.0 °

Spring Requirements: Triple Dual Outer Inner
Part Number	96803
Loads	Closed	107	LBS @	1.700	or	1 45/64
	Open	251	LBS @	1.250

Recommended RPM range with matching components
Minimum RPM	800
Maximum RPM	4600
Valve Float	5200

Cam Timing:	TAPPET	@.050
Lift:		Opens	Closes	Max Lift	Duration
	Intake	(13) ATDC	31 ABDC	112	198.0 °
	Exhaust	36.0 BBDC	(8.0) BTDC	112	208.0 °

Part TypeCamshaft

BrandCRANE CAMS

Package Height2.5

Package Width6.0

Package Length26.0

Weight12.24 PG

Vendor Part Number364211

Package Qty1

Package TypeEA
