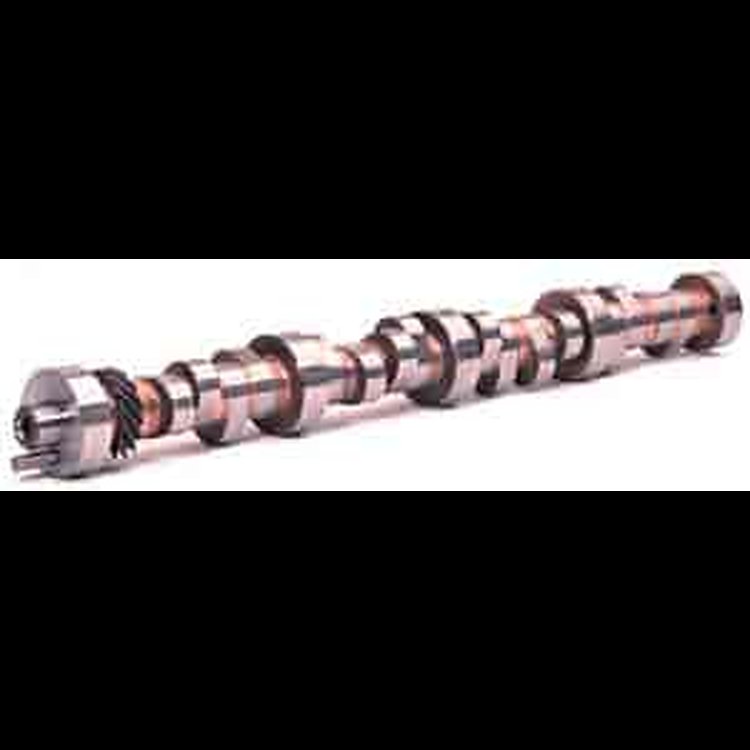

Crane Cams Hydraulic Flat Tappet Camshafts

Name: Crane Cams Hydraulic Flat Tappet Camshafts
Brand: CRANE CAMS
SKU: 271-444231
Price: 340.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ford 302 5.0L V8 1985-95

Lift:

Advertised Duration:

RPM Range:

Click More Info for specifications

Notes:

Firing Order: 1-3-7-2-6-5-4-8

Good mid-range and strong top-end power, E303 replacement, requires modified mass airflow, aftermarket intake, performance cylinder heads and headers, must use 5-speed and 3.55 or numerically higher rear gears, 2600-3000 cruise RPM, (50 state legal 1985-93, C.A.R.B. E.O. D- 225-46. Good w/centrifugal or Roots supercharger, 15 lbs. maximum boost w/8.0 maximum compression ratio advised, and good w/SEFI-type nitrous system, with mass airflow style F.I., stock 9.2 comp. ratio advised.

Grind Number	2040
Operating Range	1400-5200 RPM
Duration Advertised	.282°/.282°
Duration @ .050" Lift	220° Intake/220° Exhaust
Valve Lift with 1.6 Rockers	.498" Intake/.498" Exhaust
Lobe Separation Angle	110°
Max Lift Angle	Intake: 110° ATDC Exhaust: 110° BTDC
Open/Close @ .050" Cam Lift	Intake: 0° BTDC (opens) 40° ABDC (closes) Exhaust: 40° BBDC (opens) 0° ATDC (closes)

The most popular OE camshaft type through the late 1980s, hydraulic lifter profiles can provide a power curve that tops out just over 7000 RPM when used with high-performance hydraulic lifters. Also easy to maintain, hydraulic cams range from aggressive (rough idle) to towing (improved bottom-end torque).

Part TypeCamshaft

Product LineCrane Cams Hydraulic Flat Tappet Camshafts

BrandCRANE CAMS

Package Height2.5

Package Width3.1

Package Length22.5

Weight9.82 PG

Vendor Part Number444231

Package Qty1

Package TypeEA

No Questions

No Reviews
