Product Discontinued

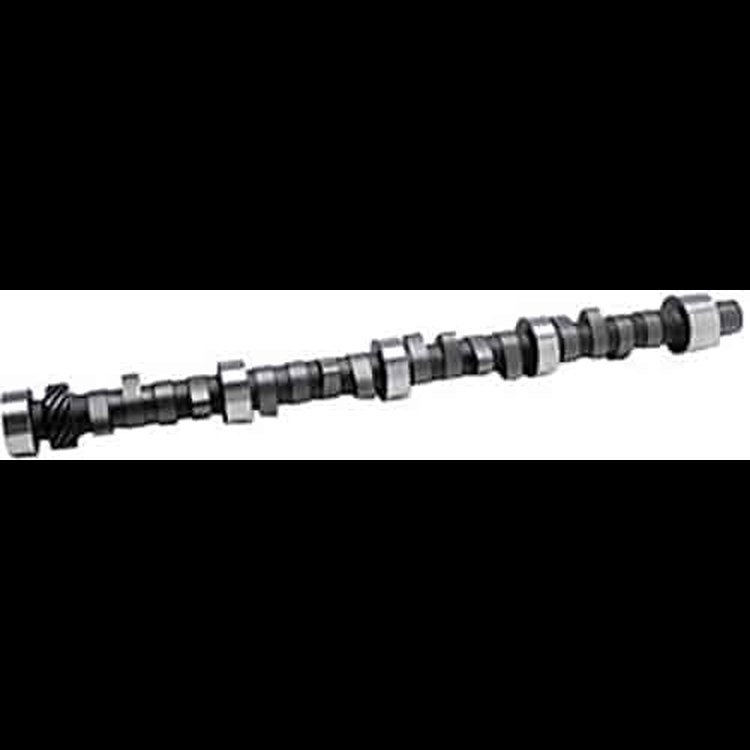

CRANE CAMSPART NUMBER: 271-503901
Hydraulic Flat Tappet Camshaft Only Lift: .458" /.487" Duration: 260°/272° RPM Range: 1200-4600
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Small Block Ford 240-300 V6 1965-96
- Hydraulic Flat Tappet Camshaft Only
Lift: .458''/.487''
Duration: 260°/272°
RPM Range: 1200-4600
Good low end torque, smooth idle, daily usage, off road, towing, economy, also mild turbocharged, 2200- 2600 cruise RPM, 8.0 to 9.5 compression ratio advised.
| Grind Number: | H-260-2 |
| Operating Range: | 1200-4600 RPM |
| Duration Advertised: | 260° Intake / 272° Exhaust |
| Duration @ .050' Lift: | 204° Intake / 216° Exhaust |
| Valve Lift w/1.61 Rockers: | .458' Intake / .487' Exhaust |
| Lobe Separation Angle: | 112° |
| Max Lift Angle: | 107° ATDC Intake / 117° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - (5°) ATDC (opens) / 29° ABDC (closes) Exhaust - 45° BBDC (opens) / (9°) BTDC (closes) |
- The most popular OE camshaft type through the late 1980s, hydraulic lifter profiles can provide a power curve that tops out just over 7000 RPM when used with high-performance hydraulic lifters. Also easy to maintain, hydraulic cams range from aggressive (rough idle) to towing (improved bottom-end torque).
Part TypeCamshaft
Product LineCrane Cams Hydraulic Flat Tappet Camshafts
BrandCRANE CAMS
Package Height3.0
Package Width3.0
Package Length30.0
Weight12.54 PG
Vendor Part Number503901
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
