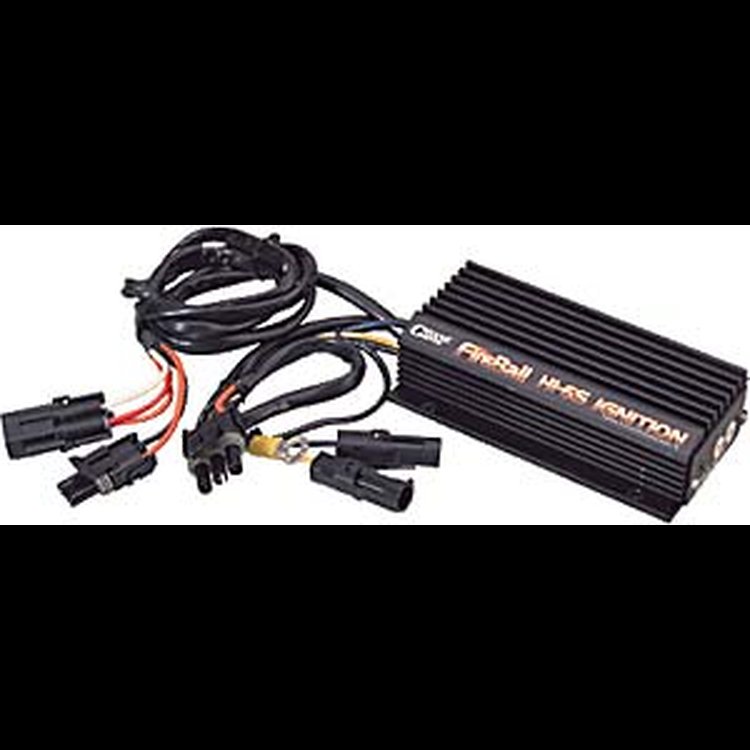

- USED HI-6S Multi-Spark Ignition
| Operating Voltage: | 6 to 18 Volts, Reverse Polarity protected, negative ground only |
| Current Draw: | 5.0 Amps max @ 7,000 RPM |
| RPM Operating Range: | 8,000 RPM (Can be extended to 10,000 RPM on 4 cyl. engine) |
| RPM Limiter Range: | 3,100 to 9,900 RPM when digital stage rev limiter mode is selected |
| Multiple Spark Duration: | 20° crank rotation below 2,000 RPM, Max 12 sparks per seq. |
| Primary Voltage Output: | 450 Volts |
| Spark Duration: | 2,800 microseconds at 2,000 RPM |
| Trigger Input: | Module Trigger (12v square wave) |
| Dimensions: | 5-1/2' x 3' x 1-1/2', 2-3/8lbs. |
BrandCRANE CAMS
Package Height3.7
Package Width5.3
Package Length8.5
Weight1.89 PG
Vendor Part NumberBBLV-6000-6300U
Package Qty1
Package TypeEA
