Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

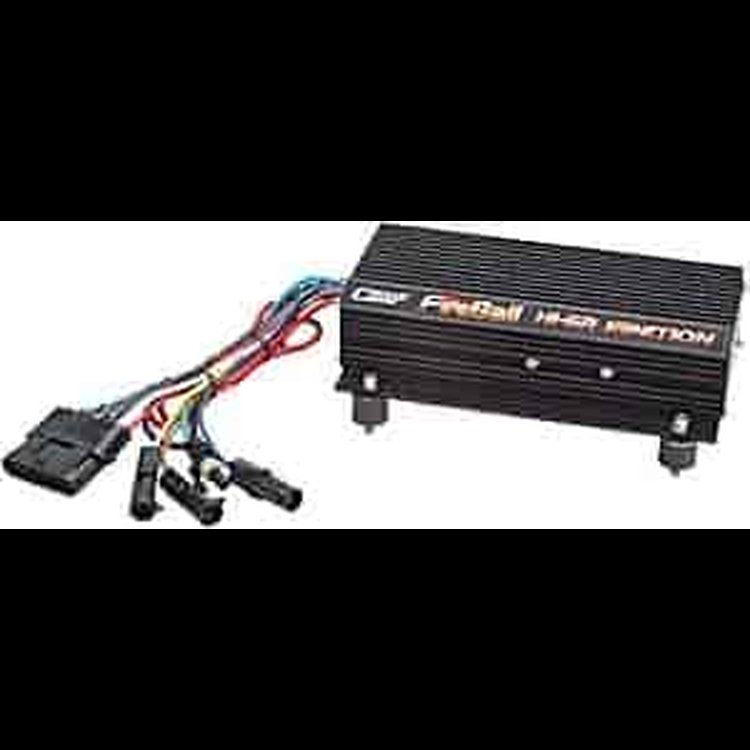

HI-6R Racing CD Ignition
- HI-6R Racing CD Ignition
- Click "More info" for Specifications
Operating Voltage: 6 to 18 Volts, Reverse Polarity protected, negative ground only Current Draw: 7.0 Amps max @ 10,000 RPM RPM Operating Range: 12,000+ RPM (w/Rev Limiter disabled) RPM Limiter Range: 600 to 9,900 RPM in 100 RPM increments RPM Accuracy: +/- 30 RPM Timing Accuracy: +/- 0.5° from 500 to 9,900 RPM Multiple Spark Duration: 20° crank rotation below 3,000 RPM, Max 12 sparks per seq. with 1 millisecond interval b/t sparks Primary Voltage Output: 450 Volts Primary Energy Output: 1200 millijoules/seq. Peak Spark Gap Current: 380 milliamps w/LX91 coil, 510 milliamps w/LX92 coil Dimensions: 8' x 4-1/2' x 2', 4-1/2lbs.
Part TypeIgnition Box
BrandCRANE CAMS
Package Height4.0
Package Width8.3
Package Length13.8
Weight4.83 PG
Part CategoryReplacement Parts
Part FitmentSemi Universal
Vendor Part NumberBBLV-6000-6400
Package Qty1
Package TypeEA
No Questions
No Reviews
