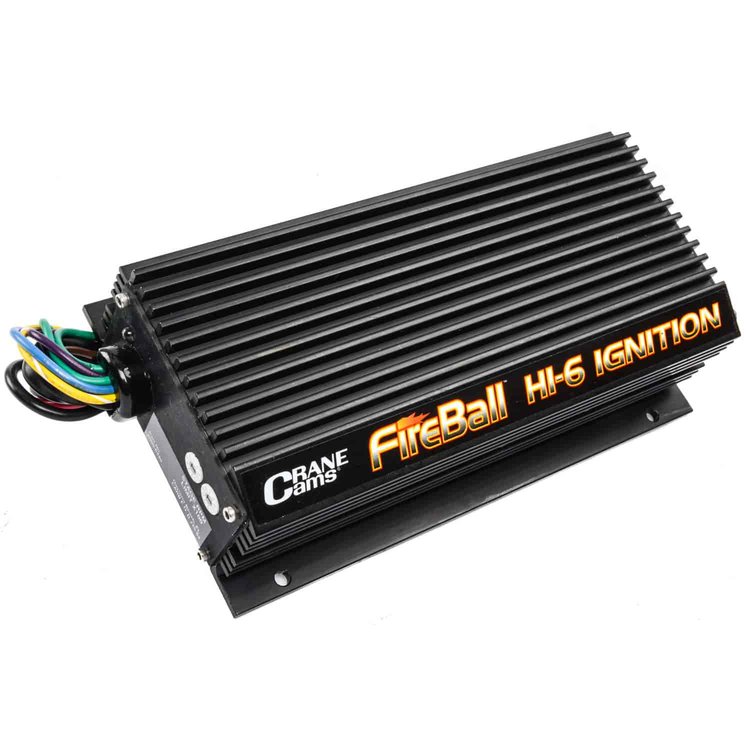

HI-6 Capacitive Discharge Multi-Spark Ignition Black

Name: HI-6 Capacitive Discharge Multi-Spark Ignition Black
Brand: CRANE CAMS
SKU: 271-6000-6440
Price: 252.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Ignitions

Black

Features

Multi-spark CD for 4, 6, or 8-cylinder race and street applications with distributor
Compatible with nitrous oxide, superchargers, and turbos
Up to 14.5:1 compression ratio
More horsepower and torque
Crisper throttle response
Bigger rotary switches with precise click-in detents for easy rev limit adjustments
Adjusts in 100 RPM increments
No chips needed
Sequential rev limiting stops engine damaging popping and banging at rev limit
Built-in timing retard available with optional Control Module #271-6000-6425
Points, module, mag triggered
Fully potted with soft urethane for heat, dirt, and moisture protection
Surface-mount, fully digital components
The most reliable CD ignition available
CARB E.O. #D-225-66
Specifications
Operating Voltage: 6 to 18 volts, reverse polarity protected, negative ground only
Current Draw: 7 amps maximum at 10,000 RPM
RPM Operating Range: 12,000 RPM (with rev limiter disabled)
RPM Limiter Range: 600 to 9,900 RPM in 100 RPM increments
RPM Limiter Accuracy: ±30 RPM
Timing Accuracy: ±0.5° from 500 to 9,900 RPM
Multiple Spark Duration: 20° crankshaft rotation below 3,000 RPM (maximum 12 sparks per sequence with 1 millisecond intervals)
Primary Voltage Output: 450 volts
Primary Energy Output: 1200 millijoules/sequence
Peak Spark Gap Current: 380 milliamps with LX91 coil, 510 milliamps with LX92 coil
Dimensions: 8" L x 4-1/2" W x 2" H
Weight: 4-1/2 pounds
