Product Discontinued
CRANE CAMSPART NUMBER: 271-700-0309

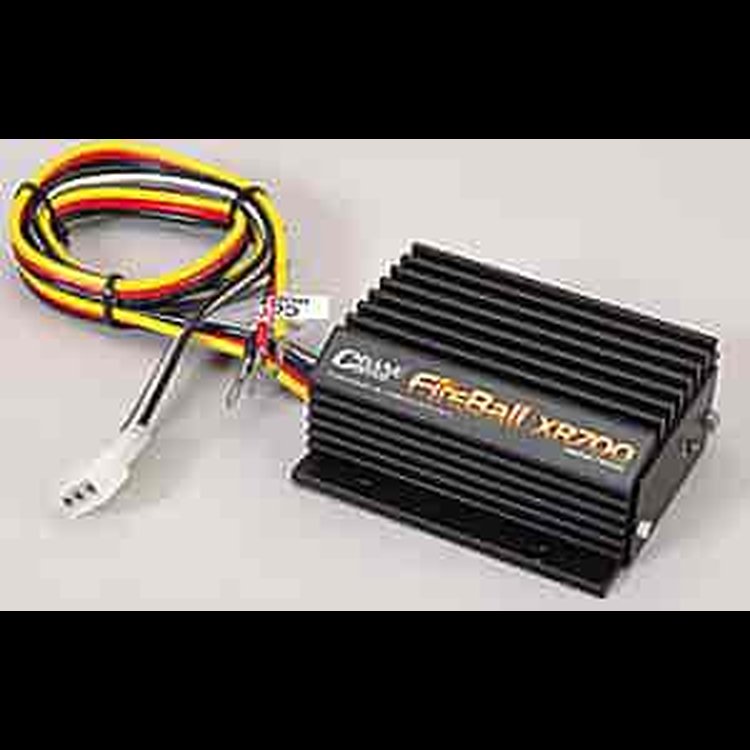

XR700 Points-To-Electronic Ignition System 1975 and Earlier Vehicles
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Mallory
- XR700 Points-To-Electronic Ignition System
- 1975 and Earlier Vehicles
- For Mallory YL Dual Point and Unilite Distributor Applications Only
- CARB E.O. D-47-3
- The XR700 System converts points type distributors to electronic ignition and is for 4, 6 and 8-cylinder engines.
- Converts points type distributors to electronic ignition
- Increased timing accuracy
- Replaces many Bosch, Lucas, Hitachi and ND units
- Status LED light for easy diagnostics
- Fully potted for protection from dirt, moisture and vibration
- Optical trigger for precise ignition timing!
- More powerful signal than points type
- Most reliable of its type
- 6th generation of reliability
- Short circuit proof
- Positive ground compatible
- 50 State LegalSpecifications:
- Operating Voltage: 6 to 18 volts, reverse polarityprotected, negative or positive ground. Notcompatible with 6-volt electrical systems as these may dropbelow 4 volts duringcranking
- Coil Current Limit: 4.5 amps (externally limited byballast resistor on XR700). Internal shortcircuit protectionlimit set at 7 amps
- RPM Range: 6,000 RPM (RPM range higher for 4 and 6-cylinder engines)
- Primary Voltage Output: 400 volts (inductive discharge)
- Primary Energy Output: 60 millijoules with PS20/40 coil
- Peak Spark Gap: 60 milliamps with PS20/40 coil
- Spark Duration: 300 microseconds at 6,000 RPM
- Dimensions: 3-1/2''L x 3''W x 1-1/2''H, 1 lb.
Features:
Product LineCrane Cams XR700 Points-To-Electronic Ignition Systems
BrandCRANE CAMS
Package Height2.7
Package Width5.9
Package Length7.8
Weight1.34 PG
Vendor Part NumberBBLV-700-0309
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
