Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy

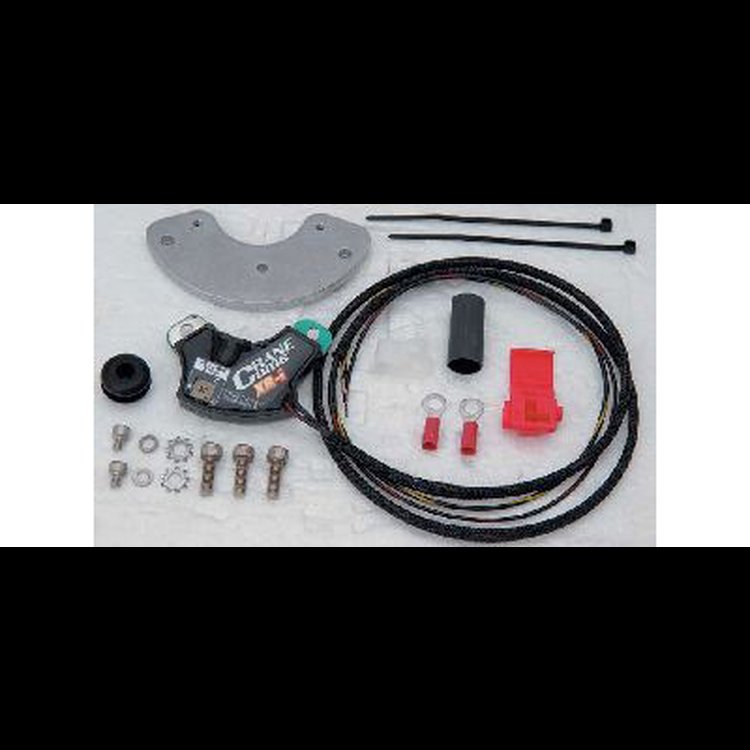

- XR-i Points to Electronic Conversion
- 1957-74 Chevy V8
- OE Single Points Distributors Only
Specifications: - Operating Voltage: 6-18V Reverse Polarity Protection, Negative Ground
- Current Draw: 3 Amps Max @ 5,500 RPM
- RPM Operating Range: 8,000 RPM
- RPM Limiter Range: 4,000-8,000 RPM
- Primary Voltage Output: 400 V (Inductive Discharge)
- Primary Energy Output: 45 Millijoules with PS20 Coil and 1.65L Ballast Resistor
- Peak Spark Gap Current: 50 Milliamps with PS20 Coil and 1.65L Ballast Resistor
- Spark Duration: 2100 Microseconds @ 2,000 RPM
Part TypeIgnition Coil Conversion Kit
BrandCRANE CAMS
Package Height2.0
Package Width6.0
Package Length8.0
Weight0.25 PG
GroundNegative
Rev LimiterYes
QuantitySold as a kit
Volts12 volts
Conversion Kit Trigger StyleMagnetic
Advance TypeVacuum and mechanical
Vendor Part NumberBBLV-750-1710
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
