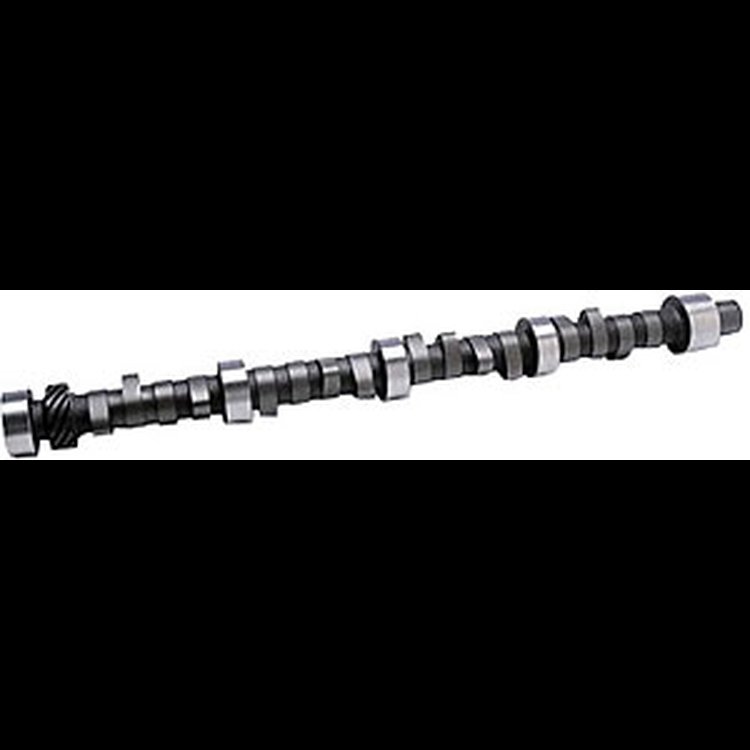

PowerMax Hydraulic Flat Tappet Camshaft Only Lift: .484" /.512" Duration: 272°/284° RPM Range: 1600-5400
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Also fits 1966 400ci & Toronado 425ci
- PowerMax Hydraulic Flat Tappet Camshaft Only
Lift: .484''/.512''
Duration: 272°/284°
RPM Range: 1600-5400
*Note: If your hydraulic lifter preload is excessive, this can be easily remedied by using Crane's rocker arm bridge shim kit 270-99179-1.
**Note: 1985-90 307ci engines are 39° bank angle and are equipped with hydraulic roller camshafts and lifters. Lifter diameter is .921'. Conventional hydraulic, mechanical, or roller camshafts and lifters can be installed in these engines if a thrust spacer is fabricated and the appropriate kit components are used.
***Note: Since 1975 General Motors divisions have exchanged engines throughout different models (ex. 350ci Chevy engines in Oldsmobile cars). Be certain of exactly which engine you have before ordering.
GOOD IDLE, DAILY USAGE, OFF ROAD, TOWING, PERFORMANCE AND FUEL EFFICIENCY, 2600-3000 CRUISE RPM, 8.75 TO 10.5 COMPRESSION RATIO ADVISED.
| Grind Number: | H-272-2 (Replaces HMV-272-2) |
| Operating Range: | 2000-5000 RPM |
| Duration Advertised: | 272° Intake / 284° Exhaust |
| Duration @ .050' Lift: | 216° Intake / 228° Exhaust |
| Valve Lift w/1.6 Rockers: | .484' Intake / .512' Exhaust |
| Lobe Separation Angle: | 112° |
| Max Lift Angle: | 107° ATDC Intake / 117° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 1° BTDC (opens) / 35° ABDC (closes) Exhaust - 51° BBDC (opens) / (3°) BTDC (closes) |
