Product Discontinued

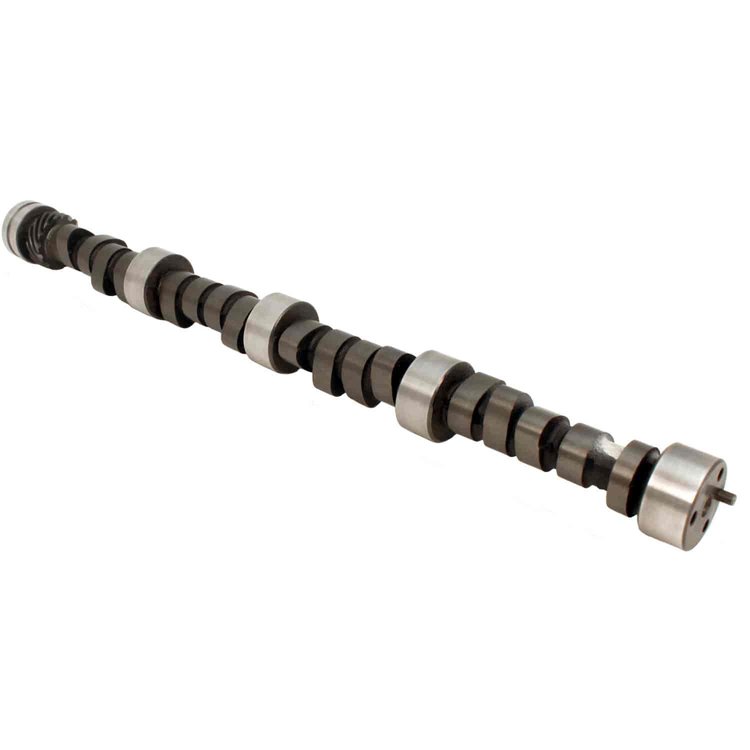

CRANE CAMSPART NUMBER: 271-968561
Blueprinted Mechanical Flat Tappet Camshaft (427ci/400HP) Lift: .560"/.580" Duration @ .050" : 264°/269° RPM Range: 4400-7200
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1967-95 Big Block Chevy 396-454
- Blueprinted Mechanical Flat Tappet Camshaft
(427ci/400HP)
Lift: .560"/.580"
Duration @ .050'': 264°/269°
RPM Range: 4400-7200
Replacement for 400HP 427ci first design L88 cam
*Note: Meets memorandum 1-A for original applications.
**Note: In order to use these camshafts in 1965-66 396/427ci blocks, it is necessary to machine a 3/16' wide x 7/64' deep groove in the rear main journal of the cam to allow oil flow to the top of the engine.
| Grind Number: | 3925535 T1.2 |
| Operating Range: | 4400-7200 RPM |
| Duration Advertised: | N/A Intake / N/A Exhaust |
| Duration @ .050' Lift: | 264° Intake / 269° Exhaust |
| Valve Lift w/1.7 Rockers: | .560' Intake / .580' Exhaust |
| Lobe Separation Angle: | 112° |
| Max Lift Angle: | 108° ATDC Intake / 116° BTDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 24° BTDC (opens) / 60° ABDC (closes) Exhaust - 70.5° BBDC (opens) / 18.5° ATDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.6
Package Width2.6
Package Length25.2
Weight10.22 PG
Vendor Part Number968561
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
