Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

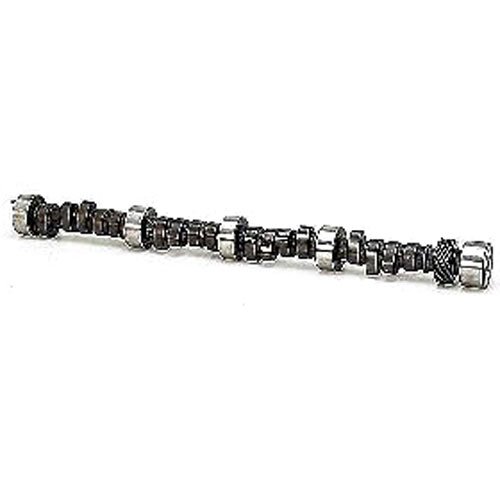

1955-81 Pontiac 265-455
- Blueprinted Hydraulic Flat Tappet Camshaft
(Factory Ram Air or 400 H.O. ''S'' Camshaft)
Lift: .408''/.407''
Duration @ .050'': 212°/225°
RPM Range: 1600-5000
| Grind Number: | 9779068 |
| Operating Range: | 1600-5000 RPM |
| Duration Advertised: | N/A Intake / N/A Exhaust |
| Duration @ .050' Lift: | 212° Intake / 225° Exhaust |
| Valve Lift w/1.5 Rockers: | .408' Intake / .407' Exhaust |
| Lobe Separation Angle: | 115.5° |
| Max Lift Angle: | 113° ATDC Intake / 118° BBDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 7° ATDC (opens) / 39° ABDC (closes) Exhaust - 50.5° BBDC (opens) / 5.5° BTDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.5
Package Length25.5
Weight9.6 PG
Vendor Part Number968781
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
