Product Discontinued

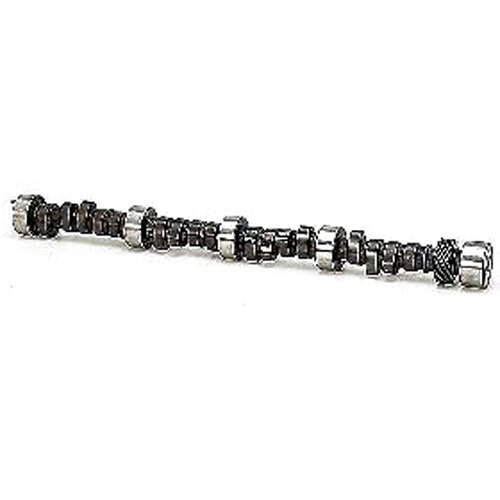

CRANE CAMSPART NUMBER: 271-969391
Blueprinted Hydraulic Flat Tappet Camshaft Lift: .461" /.480" Duration @ .050" : 214°/218° RPM Range: 1500-3800
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1965-96 Big Block Chevy 396-454
- Blueprinted Hydraulic Flat Tappet Camshaft
- Meets Memorandum 1-A for original applications
- To use this cam in 1965-66 396 and 427 blocks, it is necessary to machine a 3/16" wide x 7/64" deep groove in the rear main journal of the cam to allow oil flow to the top of the engine
Grind Number 3883986 T1.2 Operating Range 1500-3800 RPM Duration Advertised N/A Duration @ .050' Lift 214° Intake/218° Exhaust Valve Lift with 1.7 Rockers .461" Intake/.480" Exhaust Lobe Separation Angle 115° Max Lift Angle Intake: 110° ATDC
Exhaust: 120° BTDCOpen/Close @ .050" Cam Lift Intake: 3° ATDC (opens)
37° ABDC (closes)
Exhaust: 49° BBDC (opens)
11° BTDC (closes)
Lift: .461''/.480''
Duration @ .050'': 214°/218°
RPM Range: 1500-3800
- Notes
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.5
Package Width2.7
Package Length25.2
Weight10.98 PG
Vendor Part Number969391
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
