Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

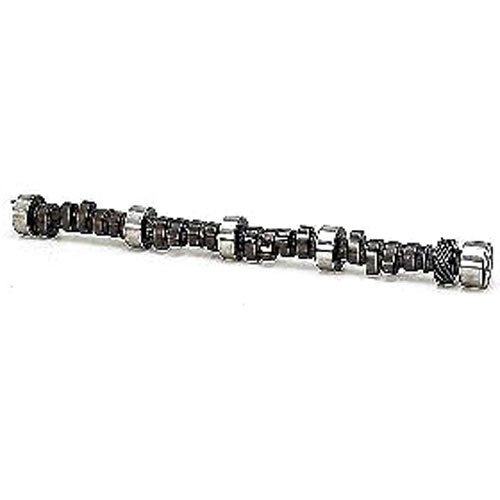

1967-95 Big Block Chevy 396-454
- Blueprinted Mechanical Flat Tappet Camshaft
(Factory 375 HP/396, 425 HP/427, 435 HP/427, 460 HP/454 Camshaft)
Lift: .520''/.520''
Duration @ .050'': 242°/242°
RPM Range: 3000-6400
*Note: Replacement for factory 375 HP 396 cu.in., 425 HP 427 cu.in., 435 HP 427 cu.in., 460 HP 454 cu.in. camshaft.
| Grind Number: | 3863143 |
| Operating Range: | 3000-6400 RPM |
| Duration Advertised: | N/A Intake / N/A Exhaust |
| Duration @ .050' Lift: | 242° Intake / 242° Exhaust |
| Valve Lift w/1.7 Rockers: | .520' Intake / .520' Exhaust |
| Lobe Separation Angle: | 114° |
| Max Lift Angle: | 108° BTDC Intake / 120° BBDC Exhaust |
| Open/Close @.050' Cam Lift: | Intake - 13° BTDC (opens) / 49° ABDC (closes) Exhaust - 61° BBDC (opens) / 1° ATDC (closes) |
Part TypeCamshaft
BrandCRANE CAMS
Package Height2.1
Package Width2.5
Package Length25.3
Weight10.35 PG
Vendor Part Number969961
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
