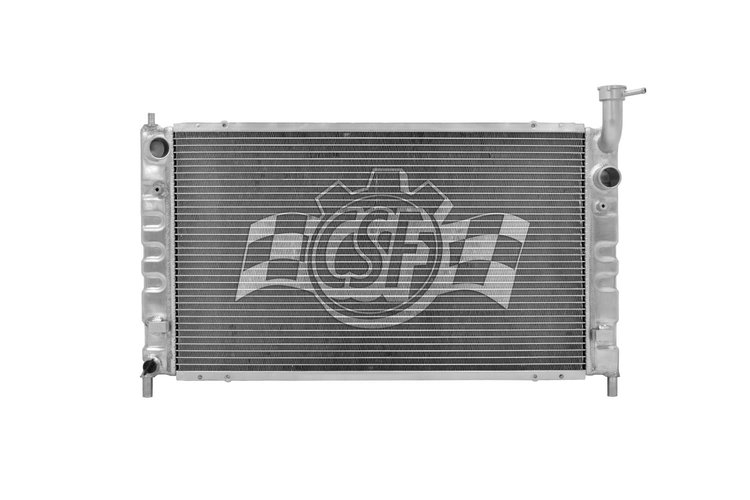

CSF Radiators 3146 Features:

• 100% OE style & OE specs for "Dop-in fit"
• Pre-installed & tested drain plug
• 100% Hydrostatic tested at 1.5 times operating pressure
• Tech Note: O.E.M. style All Aluminum tanks & core model;supplied as Radiator & Condenser module.
• CSF Cap Number: 4513
• Cap Included: No
• Down Flow Or Cross Flow Type: Cross Flow
• Tank Material: Aluminum
• Core Material: Aluminum
• Radiator Core Row Quantity: 1
• Outlet Diameter: 1 1/4 Right in.
• Inlet Diameter: 1 1/4 Left in.
• Outlet Width (in): 13/16
• Outlet Length (in): 14 5/16
• Inlet Width (in): 13/16
• Inlet Length (in): 14 5/16
• Core Thickness: 5/8 in.
• Core Width: 13 11/16 in.
• Core Length: 23 5/8 in.
